BPI-M4 Berry control oled module via spi

Banana Pi SBCs design BPI-M4(RTD1395)
1
  • OS :2023-11-30 Bpi-m4berry_1.0.0_ubuntu_jammy_desktop_xfce_linux6.1.31

Step 1: SPI Function not open by default on this system ,so you need to open this function

sudo bananapi-config

image800×447 56 KB

select “System”>“Hardware”, select “spi1-cs1-spidev”


then save and reboot

After restarting, check if there are SPI nodes.

pi@bpi-m4berry:~$ ls /dev/spidev1.1
/dev/spidev1.1

Step 2: Download and install WiringPI

git clone https://github.com/BigQubot/WiringPI
cd WiringPI
sudo ./build clean
sudo ./build

Step 3: Copy smaple code to OLED.c file

sudo nano OLED.c

Step 4 : Compile OLED.c

gcc -o OLED OLED.c -l wiringPi

Step 5: Run OLED

sudo ./OLED

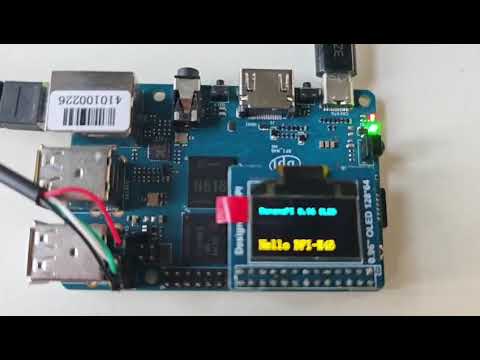

Video Demo 1:

Sample code:

#include <stdio.h>
#include <stdlib.h>

#include <wiringPi.h>

#define byte  unsigned char
#define word  unsigned int
#define dword unsigned long

#define XLevelL     0x00
#define XLevelH     0x10
#define XLevel      ((XLevelH&0x0F)*16+XLevelL)
#define Max_Column  128
#define Max_Row     64
#define Brightness  0xCF

#define X_WIDTH   128
#define Y_WIDTH   64

//======================================

void LCD_Init(void);
void LCD_CLS(void);
void LCD_P6x8Str(byte x,byte y,byte ch[]);
void LCD_P8x16Str(byte x,byte y,byte ch[]);
void LCD_P14x16Ch(byte x,byte y,byte N);
void LCD_Fill(byte dat);
void Draw_BMP(byte bmp[]);


//字符库
const unsigned char F6x8[][6] =
{
  { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 },   // sp
  { 0x00, 0x00, 0x00, 0x2f, 0x00, 0x00 },   // !
  { 0x00, 0x00, 0x07, 0x00, 0x07, 0x00 },   // "
  { 0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14 },   // #
  { 0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12 },   // $
  { 0x00, 0x62, 0x64, 0x08, 0x13, 0x23 },   // %
  { 0x00, 0x36, 0x49, 0x55, 0x22, 0x50 },   // &
  { 0x00, 0x00, 0x05, 0x03, 0x00, 0x00 },   // '
  { 0x00, 0x00, 0x1c, 0x22, 0x41, 0x00 },   // (
  { 0x00, 0x00, 0x41, 0x22, 0x1c, 0x00 },   // )
  { 0x00, 0x14, 0x08, 0x3E, 0x08, 0x14 },   // *
  { 0x00, 0x08, 0x08, 0x3E, 0x08, 0x08 },   // +
  { 0x00, 0x00, 0x00, 0xA0, 0x60, 0x00 },   // ,
  { 0x00, 0x08, 0x08, 0x08, 0x08, 0x08 },   // -
  { 0x00, 0x00, 0x60, 0x60, 0x00, 0x00 },   // .
  { 0x00, 0x20, 0x10, 0x08, 0x04, 0x02 },   // /
  { 0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E },   // 0
  { 0x00, 0x00, 0x42, 0x7F, 0x40, 0x00 },   // 1
  { 0x00, 0x42, 0x61, 0x51, 0x49, 0x46 },   // 2
  { 0x00, 0x21, 0x41, 0x45, 0x4B, 0x31 },   // 3
  { 0x00, 0x18, 0x14, 0x12, 0x7F, 0x10 },   // 4
  { 0x00, 0x27, 0x45, 0x45, 0x45, 0x39 },   // 5
  { 0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30 },   // 6
  { 0x00, 0x01, 0x71, 0x09, 0x05, 0x03 },   // 7
  { 0x00, 0x36, 0x49, 0x49, 0x49, 0x36 },   // 8
  { 0x00, 0x06, 0x49, 0x49, 0x29, 0x1E },   // 9
  { 0x00, 0x00, 0x36, 0x36, 0x00, 0x00 },   // :
  { 0x00, 0x00, 0x56, 0x36, 0x00, 0x00 },   // ;
  { 0x00, 0x08, 0x14, 0x22, 0x41, 0x00 },   // <
  { 0x00, 0x14, 0x14, 0x14, 0x14, 0x14 },   // =
  { 0x00, 0x00, 0x41, 0x22, 0x14, 0x08 },   // >
  { 0x00, 0x02, 0x01, 0x51, 0x09, 0x06 },   // ?
  { 0x00, 0x32, 0x49, 0x59, 0x51, 0x3E },   // @
  { 0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C },   // A
  { 0x00, 0x7F, 0x49, 0x49, 0x49, 0x36 },   // B
  { 0x00, 0x3E, 0x41, 0x41, 0x41, 0x22 },   // C
  { 0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C },   // D
  { 0x00, 0x7F, 0x49, 0x49, 0x49, 0x41 },   // E
  { 0x00, 0x7F, 0x09, 0x09, 0x09, 0x01 },   // F
  { 0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A },   // G
  { 0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F },   // H
  { 0x00, 0x00, 0x41, 0x7F, 0x41, 0x00 },   // I
  { 0x00, 0x20, 0x40, 0x41, 0x3F, 0x01 },   // J
  { 0x00, 0x7F, 0x08, 0x14, 0x22, 0x41 },   // K
  { 0x00, 0x7F, 0x40, 0x40, 0x40, 0x40 },   // L
  { 0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F },   // M
  { 0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F },   // N
  { 0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E },   // O
  { 0x00, 0x7F, 0x09, 0x09, 0x09, 0x06 },   // P
  { 0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E },   // Q
  { 0x00, 0x7F, 0x09, 0x19, 0x29, 0x46 },   // R
  { 0x00, 0x46, 0x49, 0x49, 0x49, 0x31 },   // S
  { 0x00, 0x01, 0x01, 0x7F, 0x01, 0x01 },   // T
  { 0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F },   // U
  { 0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F },   // V
  { 0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F },   // W
  { 0x00, 0x63, 0x14, 0x08, 0x14, 0x63 },   // X
  { 0x00, 0x07, 0x08, 0x70, 0x08, 0x07 },   // Y
  { 0x00, 0x61, 0x51, 0x49, 0x45, 0x43 },   // Z
  { 0x00, 0x00, 0x7F, 0x41, 0x41, 0x00 },   // [
  { 0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55 },   // 55
  { 0x00, 0x00, 0x41, 0x41, 0x7F, 0x00 },   // ]
  { 0x00, 0x04, 0x02, 0x01, 0x02, 0x04 },   // ^
  { 0x00, 0x40, 0x40, 0x40, 0x40, 0x40 },   // _
  { 0x00, 0x00, 0x01, 0x02, 0x04, 0x00 },   // '
  { 0x00, 0x20, 0x54, 0x54, 0x54, 0x78 },   // a
  { 0x00, 0x7F, 0x48, 0x44, 0x44, 0x38 },   // b
  { 0x00, 0x38, 0x44, 0x44, 0x44, 0x20 },   // c
  { 0x00, 0x38, 0x44, 0x44, 0x48, 0x7F },   // d
  { 0x00, 0x38, 0x54, 0x54, 0x54, 0x18 },   // e
  { 0x00, 0x08, 0x7E, 0x09, 0x01, 0x02 },   // f
  { 0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C },   // g
  { 0x00, 0x7F, 0x08, 0x04, 0x04, 0x78 },   // h
  { 0x00, 0x00, 0x44, 0x7D, 0x40, 0x00 },   // i
  { 0x00, 0x40, 0x80, 0x84, 0x7D, 0x00 },   // j
  { 0x00, 0x7F, 0x10, 0x28, 0x44, 0x00 },   // k
  { 0x00, 0x00, 0x41, 0x7F, 0x40, 0x00 },   // l
  { 0x00, 0x7C, 0x04, 0x18, 0x04, 0x78 },   // m
  { 0x00, 0x7C, 0x08, 0x04, 0x04, 0x78 },   // n
  { 0x00, 0x38, 0x44, 0x44, 0x44, 0x38 },   // o
  { 0x00, 0xFC, 0x24, 0x24, 0x24, 0x18 },   // p
  { 0x00, 0x18, 0x24, 0x24, 0x18, 0xFC },   // q
  { 0x00, 0x7C, 0x08, 0x04, 0x04, 0x08 },   // r
  { 0x00, 0x48, 0x54, 0x54, 0x54, 0x20 },   // s
  { 0x00, 0x04, 0x3F, 0x44, 0x40, 0x20 },   // t
  { 0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C },   // u
  { 0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C },   // v
  { 0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C },   // w
  { 0x00, 0x44, 0x28, 0x10, 0x28, 0x44 },   // x
  { 0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C },   // y
  { 0x00, 0x44, 0x64, 0x54, 0x4C, 0x44 },   // z
  { 0x14, 0x14, 0x14, 0x14, 0x14, 0x14 }    // horiz lines
};

const unsigned char F8X16[]=
{
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
  0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//!1
  0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//"2
  0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//#3
  0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$4
  0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//%5
  0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//&6
  0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//'7
  0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//(8
  0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//)9
  0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//*10
  0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+11
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//,12
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//-13
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//.14
  0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,///15
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//016
  0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//117
  0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//218
  0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//319
  0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//420
  0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//521
  0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//622
  0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//723
  0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//824
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//925
  0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//:26
  0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//;27
  0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//<28
  0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//=29
  0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//>30
  0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//?31
  0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@32
  0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A33
  0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B34
  0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C35
  0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D36
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E37
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F38
  0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G39
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H40
  0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I41
  0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J42
  0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K43
  0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L44
  0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M45
  0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N46
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O47
  0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P48
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q49
  0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R50
  0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S51
  0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T52
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U53
  0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V54
  0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W55
  0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X56
  0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y57
  0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z58
  0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[59
  0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\60
  0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//]61
  0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^62
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_63
  0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//`64
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a65
  0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b66
  0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c67
  0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d68
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e69
  0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f70
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g71
  0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h72
  0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i73
  0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j74
  0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k75
  0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l76
  0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m77
  0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n78
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o79
  0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p80
  0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q81
  0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r82
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s83
  0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t84
  0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u85
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v86
  0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w87
  0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x88
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y89
  0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z90
  0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{91
  0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//|92
  0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//}93
  0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~94
};

void LCD_WrDat(unsigned char dat) {
  unsigned char i=8;
  digitalWrite(10, 0);  //LCD_CS=0;
  digitalWrite(5, 1);   //LCD_DC=1;
  digitalWrite(14, 0);  //LCD_SCL=0;

  while(i--)
  {
    if(dat&0x80){digitalWrite(12, 1);}  //LCD_SDA=1;
      else{digitalWrite(12, 0);}        //LCD_SDA=0;
      digitalWrite(14, 1);  //LCD_SCL=1;
      ;;;
    digitalWrite(14, 0);    //LCD_SCL=0;  下降沿送走数据
    dat<<=1;
  }
  digitalWrite(10, 1);      //LCD_CS=1;
}

void LCD_WrCmd(unsigned char cmd)
{

  unsigned char i=8;

  digitalWrite(10, 0); //LCD_CS=0;
  digitalWrite(5, 0); //LCD_DC=0;
  digitalWrite(14, 0); //LCD_SCL=0;

  while(i--)
  {
    if(cmd&0x80){digitalWrite(12, 1);}  //LCD_SDA=1;
    else{digitalWrite(12, 0);}          //LCD_SDA=0;
    digitalWrite(14, 1);  //LCD_SCL=1;
    ;;;
    digitalWrite(14, 0);  //LCD_SCL=0;;
    cmd<<=1;;
  }
  digitalWrite(10, 1);    //LCD_CS=1;
}

void LCD_Set_Pos(unsigned char x, unsigned char y)
{
  LCD_WrCmd(0xb0+y);
  LCD_WrCmd(((x&0xf0)>>4)|0x10);
  LCD_WrCmd((x&0x0f)|0x00);
}

void LCD_Fill(unsigned char bmp_dat)
{
  unsigned char y,x;

  for(y=0;y<8;y++)
  {
    LCD_WrCmd(0xb0+y);
    LCD_WrCmd(0x01);
    LCD_WrCmd(0x10);
    for(x=0;x<X_WIDTH;x++)
      LCD_WrDat(bmp_dat);
  }
}
void LCD_CLS(void)
{
  unsigned char y,x;

  for(y=0;y<8;y++)
  {
    LCD_WrCmd(0xb0+y);
    LCD_WrCmd(0x01);
    LCD_WrCmd(0x10);
    for(x=0;x<X_WIDTH;x++)
      LCD_WrDat(0);
  }
}

void LCD_DLY_ms(unsigned int ms)
{
  unsigned int a;

  while(ms)
  {
    a=1335;
    while(a--);
    ms--;
  }
  return;
}

void LCD_Init(void)
{
  digitalWrite(14, 1);  //LCD_SCL=1;
  digitalWrite(10, 1);  //LCD_CS=1;   //预制 SLK 和 CS 为高电平
  digitalWrite(6, 0);   //LCD_RST=0;

  delay(50);            //LCD_DLY_ms(50);
  digitalWrite(6, 1);   //LCD_RST=1;

  //从上电到下面开始初始化要有足够的时间，即等待 RC 复位完毕

  LCD_WrCmd(0xae);//--turn off oled panel LCD_WrCmd(0x00);//---set low column address
  LCD_WrCmd(0x10);//---set high column address
  LCD_WrCmd(0x40);//--set start line address Set Mapping RAM Display Start Line (0x00~0x3F)
  LCD_WrCmd(0x81);//--set contrast control register
  LCD_WrCmd(0xcf);// Set SEG Output Current Brightness
  LCD_WrCmd(0xa0);//--Set SEG/Column Mapping    0xa0 左右反置 0xa1 正常
  LCD_WrCmd(0xc0);//Set COM/Row Scan Direction  0xc0 上下反置 0xc8 正常
  LCD_WrCmd(0xa6);//--set normal display
  LCD_WrCmd(0xa8);//--set multiplex ratio(1 to 64)
  LCD_WrCmd(0x3f);//--1/64 duty
  LCD_WrCmd(0xd3);//-set display offset Shift Mapping RAM Counter (0x00~0x3F)
  LCD_WrCmd(0x00);//-not offset
  LCD_WrCmd(0xd5);//--set display clock divide ratio/oscillator frequency
  LCD_WrCmd(0x80);//--set divide ratio, Set Clock as 100 Frames/Sec
  LCD_WrCmd(0xd9);//--set pre-charge period
  LCD_WrCmd(0xf1);//Set Pre-Charge as 15 Clocks & Discharge as 1 Clock
  LCD_WrCmd(0xda);//--set com pins hardware configuration
  LCD_WrCmd(0x12);
  LCD_WrCmd(0xdb);//--set vcomh
  LCD_WrCmd(0x40);//Set VCOM Deselect Level
  LCD_WrCmd(0x20);//-Set Page Addressing Mode (0x00/0x01/0x02)
  LCD_WrCmd(0x02);//
  LCD_WrCmd(0x8d);//--set Charge Pump enable/disable
  LCD_WrCmd(0x14);//--set(0x10) disable
  LCD_WrCmd(0xa4);// Disable Entire Display On (0xa4/0xa5)
  LCD_WrCmd(0xa6);// Disable Inverse Display On (0xa6/a7)
  LCD_WrCmd(0xaf);//--turn on oled panel
  LCD_Fill(0x00); //初始清屏
  LCD_Set_Pos(0,0);
}

//==============================================================
//函数名：LCD_P6x8Str(unsigned char x,unsigned char y,unsigned char *p)
//功能描述：写入一组标准 ASCII 字符串
//参数：显示的位置（x,y），y 为页范围 0～7，要显示的字符串
//返回：无
//==============================================================
void LCD_P6x8Str(unsigned char x,unsigned char y,unsigned char ch[])
{
  unsigned char c=0,i=0,j=0;
  while (ch[j]!='\0')
  {
    c =ch[j]-32;
    if(x>126){x=0;y++;}
    LCD_Set_Pos(x,y);
    for(i=0;i<6;i++)
      LCD_WrDat(F6x8[c][i]);
    x+=6;
    j++;
  }
}
//==============================================================
//函数名：LCD_P8x16Str(unsigned char x,unsigned char y,unsigned char *p)
//功能描述：写入一组标准 ASCII 字符串
//参数：显示的位置（x,y），y 为页范围 0～7，要显示的字符串
//返回：无
//==============================================================
void LCD_P8x16Str(unsigned char x,unsigned char y,unsigned char ch[])
{
  unsigned char c=0,i=0,j=0;
  while (ch[j]!='\0')
  {
    c =ch[j]-32;
    if(x>120){x=0;y++;}
    LCD_Set_Pos(x,y);
    for(i=0;i<8;i++)
      LCD_WrDat(F8X16[c*16+i]);
    LCD_Set_Pos(x,y+1);
    for(i=0;i<8;i++)
      LCD_WrDat(F8X16[c*16+i+8]);
    x+=8;
    j++;
  }
}
//==============================================================
//函数名：LCD_P14x16Ch(unsigned char x,unsigned char y,unsigned char N)
//功能描述：输出汉字字符串
//参数：显示的位置（x,y），y 为页范围 0～7，要显示的字符串
//返回：无
//==============================================================
/*
void LCD_P14x16Ch(unsigned char x,unsigned char y,unsigned char N)
{
  unsigned char wm=0,ii = 0;
  unsigned int adder=28*N;
  LCD_Set_Pos(x , y);
  for(wm = 0;wm < 14;wm++)
  {
    LCD_WrDat(F14x16[adder]);
    adder += 1;
  }
  LCD_Set_Pos(x,y + 1);
  for(wm = 0;wm < 14;wm++)
  {
    LCD_WrDat(F14x16[adder]); adder += 1;
  }
}
*/
//==============================================================
//函数名： void Draw_BMP(byte x,byte y)
//功能描述：显示 BMP 图片 128×64
//参数：起始点坐标(x,y),x 的范围 0～127，y 为页的范围 0～7
//返回：无
//==============================================================
void Draw_BMP(byte bmp[])
{
  byte x,y;
  word ii=0;

  for(x=0;x<128;x++)
    for(y=0;y<8;y++)
    {
      LCD_Set_Pos(x,y);
      LCD_WrDat(bmp[ii++]);
      if(ii>=720)
        return;
    }
}

void main(void)
{
  unsigned char i=0;
  wiringPiSetup();
  pinMode(10, OUTPUT);
  pinMode(5, OUTPUT);
  pinMode(14, OUTPUT);
  pinMode(12, OUTPUT);
  pinMode(6, OUTPUT);
  LCD_Init();
  LCD_P6x8Str(0,1,"BananaPI 0.96 OLED");
  LCD_P8x16Str(0,6,"Hello BPI-M3");
}

more about BPI-M4Berry

https://wiki.banana-pi.org/Banana_Pi_BPI-M4_Berry

more about BPI 0.96’ OLED (SSD1306) Module

https://wiki.banana-pi.org/BPI_OLED_Display_Module

Easy to buy

  • Aliexpress shop:

SINOVOIP Aliexpress shop: https://www.aliexpress.us/item/1005006212355480.html

Bipai Aliexpress shop: https://www.aliexpress.us/item/1005006212128000.html

  • Taobao shop:

Taobao Shop: https://item.taobao.com/item.htm?id=747425760994

  • OEM&ODM:

OEM&ODM, please contact: [email protected]
