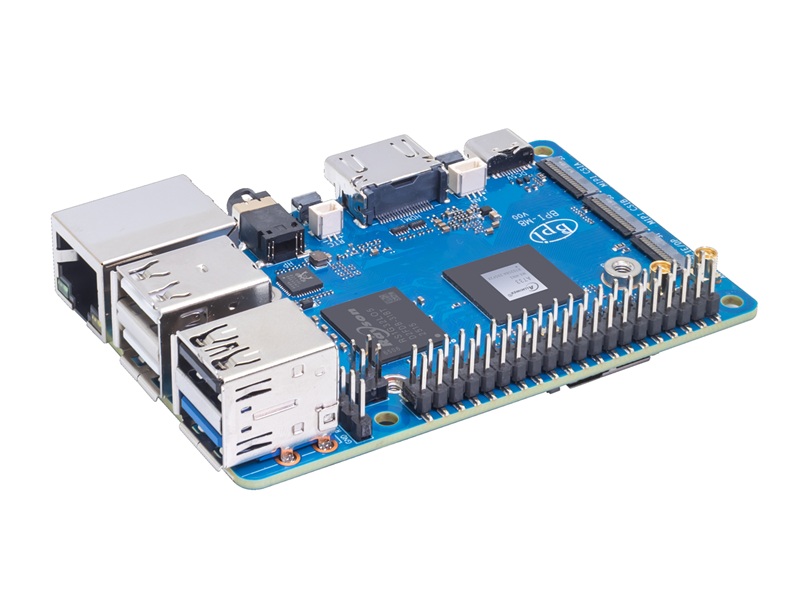

The BPI-M8 is built on the high-performance octa-core AI platform chip A733, which combines a dual-core Arm® Cortex®-A76 and a hexa-core Arm Cortex-A55. It supports an Imagination PowerVR BXM-4-64 MC1 GPU, a 3TOPS NPU, and LPDDR4, LPDDR4x, LPDDR5 DRAM and UFS/eMMC memory.
The BPI-M8 boasts a rich array of peripherals, including USB, DP, UFS, HDMI, MIPI CSI, MIPI DSI, FAN, RTC, and one Gigabit Ethernet port (supporting PoE). It also supports SD card booting and features an onboard KEIIOT K038 WiFi/Bluetooth chip. It is equipped with 4GB of LPDDR5 RAM, 32GB of eMMC storage, and two 12x12mm single-antenna modules.
Key Features
- Dual-Core Arm Cortex-A76 + Hexa-Core Arm Cortex-A55, up to 2.0GHz
- Imagination PowerVR BXM-4-64 MC1
- 4GB LPDDR5 RAM
- 32GB eMMC flash
- Support MIPI DSI Display interface
- Support MIPI CSI Camera interface
- Support PCIE/DP interface
- Supports UFS modules
- HDMI output
- 40 PIN GPIO
- POE

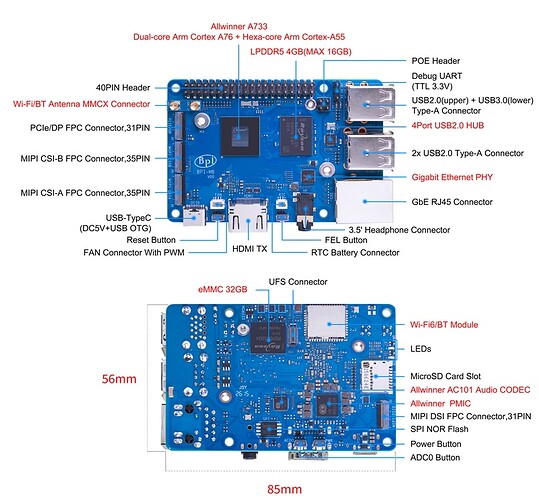

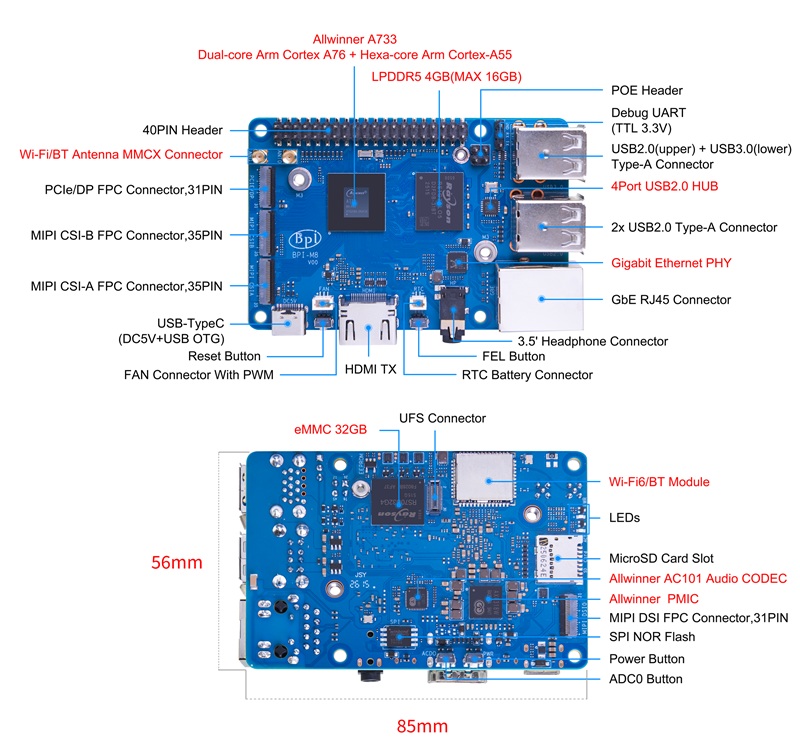

Hardware interface:
online wiki documents: Banana Pi BPI-M8 | BananaPi Docs
