Banana Pi BPI-M4 with RTD1395 quad-core CPU,ARM cortex-A53 chip

Banana Pi SBCs design BPI-M4(RTD1395)
1

Banana Pi BPI-M4 with RTD1395 quad-core CPU,ARM cortex-A53 chip design

Banana%20Pi%20BPI-M4

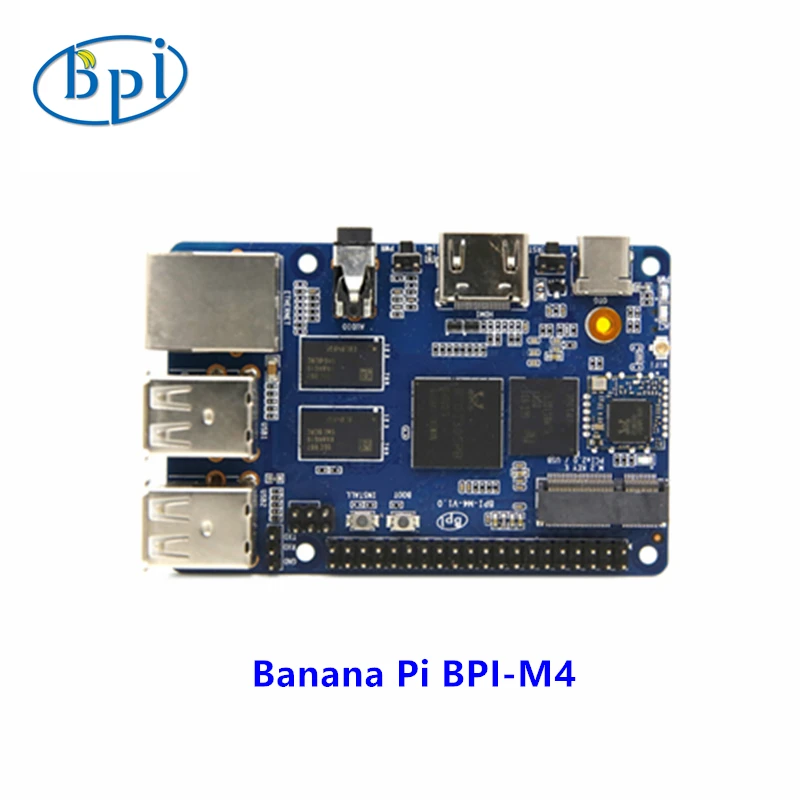

Banana Pi BPI-M4 use Realtek RTD1395 chp design ,it is a 64-bit quad-core A53 mini single board computer. It features 1 GB of RAM and 8 GB eMMC. It also has onboard WiFi for b/g/n/ac and BT 4.2. On the ports side, the BPI-M4 has 4 USB 2.0 ports, 1 USB TYPE C port, 1 HDMI port, 1 audio jack. support M.2 Key E PCIE 2.0 interface.

Banana%20Pi%20BPI-M4%201

The RTD1395 is equipped with a high-performance quad-core CPU,ARM cortex-A53,with 512K L2 cache embedded. the RTD1395 also integrates and efficient ARM Mali-470 Graphic Processing Unit(GPU) to accelerate 2D and 3D graphics processing. For acceleration of this OSD and 2K user interface,the built-in Streaming Engine of the RTD1395 provides commonly used drawing functions.the CPU is dedicated to applications ,while most of the functions of the RTD1395 is dedicated to manipulating,decoding video streams in vaious formats.e.g. decoding 4K2K H.265,Full HD MPEG1/2/4/H.264/H.264 MVC,AVC/VC-1,VP8,VP9,AVS,AVS plus,HD JPEG,etc. Video DSP can also handle encoding of up to Full HD with H.264 format.Video decoding and encoding can run simultaneously.

RTD1395

hardware interface:

Banana%20Pi%20BPI-M4%20%20interface

BPI-M4 same size as raspberry Pi 3B+

Banana%20Pi%20BPI-M4%20vs%20RPI

Compatible with Raspberry pi PoE module

Banana%20Pi%20BPI-M4%20PoE

M.2 key E slot PCIE 2.0 and USB 2.0

Banana%20Pi%20BPI-M4%20PCIE

Banana Pi BPI-M4 Android 8 1 1 demo ,power by raspberry Pi PoE module
