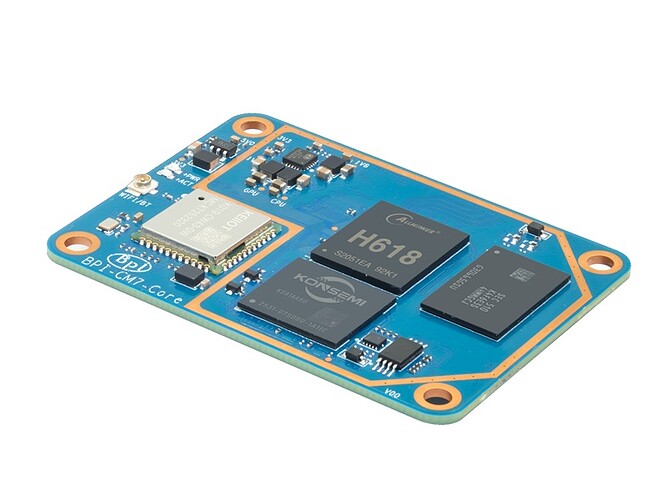

Banana Pi BPI-CM7 is an Allwinner H618 compute module with LPDDR4 memory, eMMC storage, K019 Wi-Fi 5 and Bluetooth 5.0, and two 100-pin board-to-board connectors.
Key Features
- Allwinner H618 quad-core 64-bit Arm Cortex-A53 processor, up to 1.5 GHz
- Arm Mali-G31 GPU
- Onboard LPDDR4 memory
- Onboard eMMC storage
- K019 Wi-Fi 5 and Bluetooth 5.0 module
- HDMI output
- 10/100M Ethernet
- 1 x USB 2.0 OTG and 3 x USB 2.0 host
- microSD interface
- 2 x 100-pin board-to-board connectors
- GPIO, UART, TWI/I2C, SPI, PWM, I2S/PCM, DMIC, SPDIF, and IR
- 5 V power input

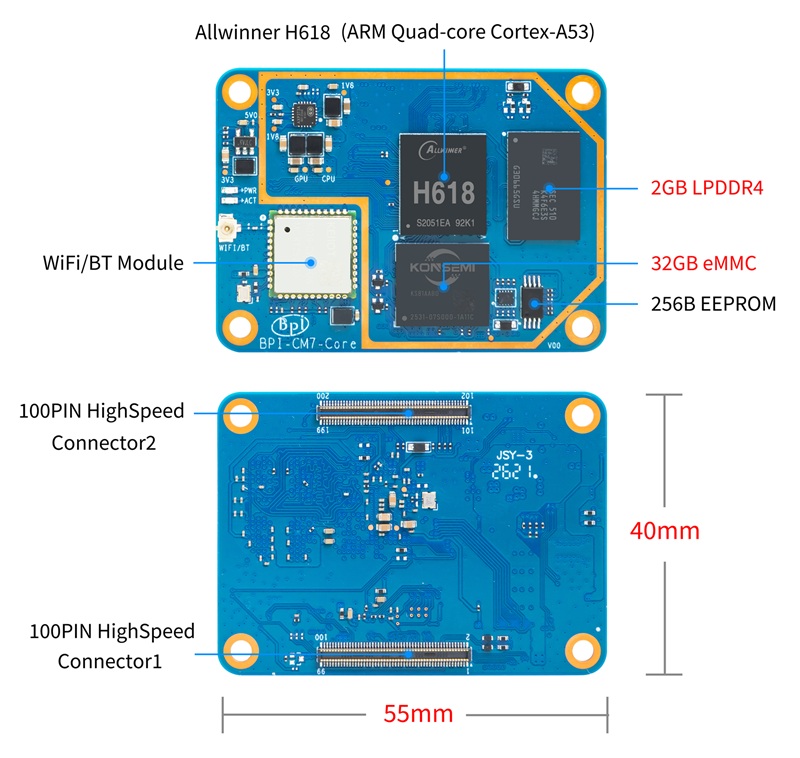

hardware interface:
more please see online development documents: Banana Pi BPI-CM7 | BananaPi Docs
