[BPI-R4 Pro]USB TypC Debug Console connector

Banana Pi Router design BPI-R4/BPI-R4 Pro(MT7988)
1

Hi. I would appreciate some help choosing this type of cable: USB TypC Debug Console connector

Thanks.

2

any usb type-c cable is good…

1 Like
3

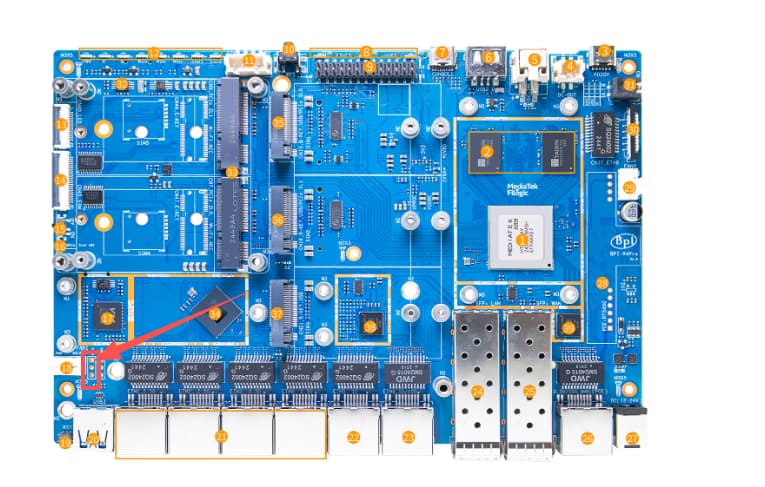

image996×379 33 KB
image765×487 67.4 KB

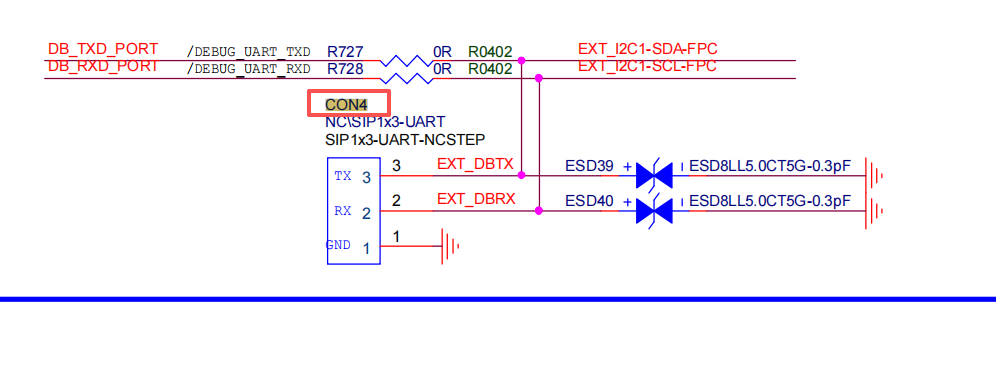

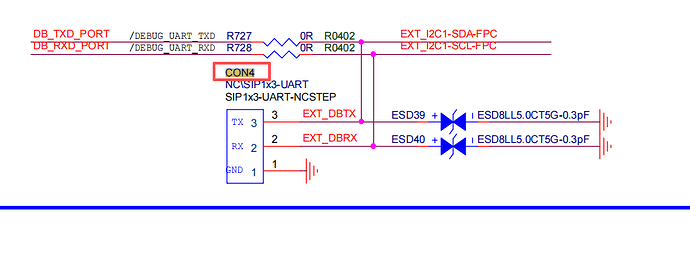

I found the TTL serial port debugging interface in the schematic diagram on the official website. You can also use this interface for debugging.

2 Likes
4

I bought this one.

https://fr.aliexpress.com/item/1741669623.html?spm=a2g0o.productlist.main.1.23d3LVi0LVi0PY&algo_pvid=b78abdbd-eec2-4298-95f1-06772b02db6a&algo_exp_id=b78abdbd-eec2-4298-95f1-06772b02db6a-0&pdp_ext_f={"order"%3A"6"%2C"eval"%3A"1"%2C"fromPage"%3A"search"}&pdp_npi=6%40dis!EUR!1.54!1.54!!!1.75!1.75!%40211b6a7a17652872030333698e6c9f!58510179083!sea!FR!0!ABX!1!0!n_tag%3A-29910%3Bd%3Acd2cf2bd%3Bm03_new_user%3A-29895&curPageLogUid=3z8ud12OWbcJ&utparam-url=scene%3Asearch|query_from%3A|x_object_id%3A1741669623|_p_origin_prod%3A

1 Like
5

This USB to TTL cable looks fine. By the way, the serial port cable for this board needs to be soldered with pins by yourself. It’s not included in the factory version.

6

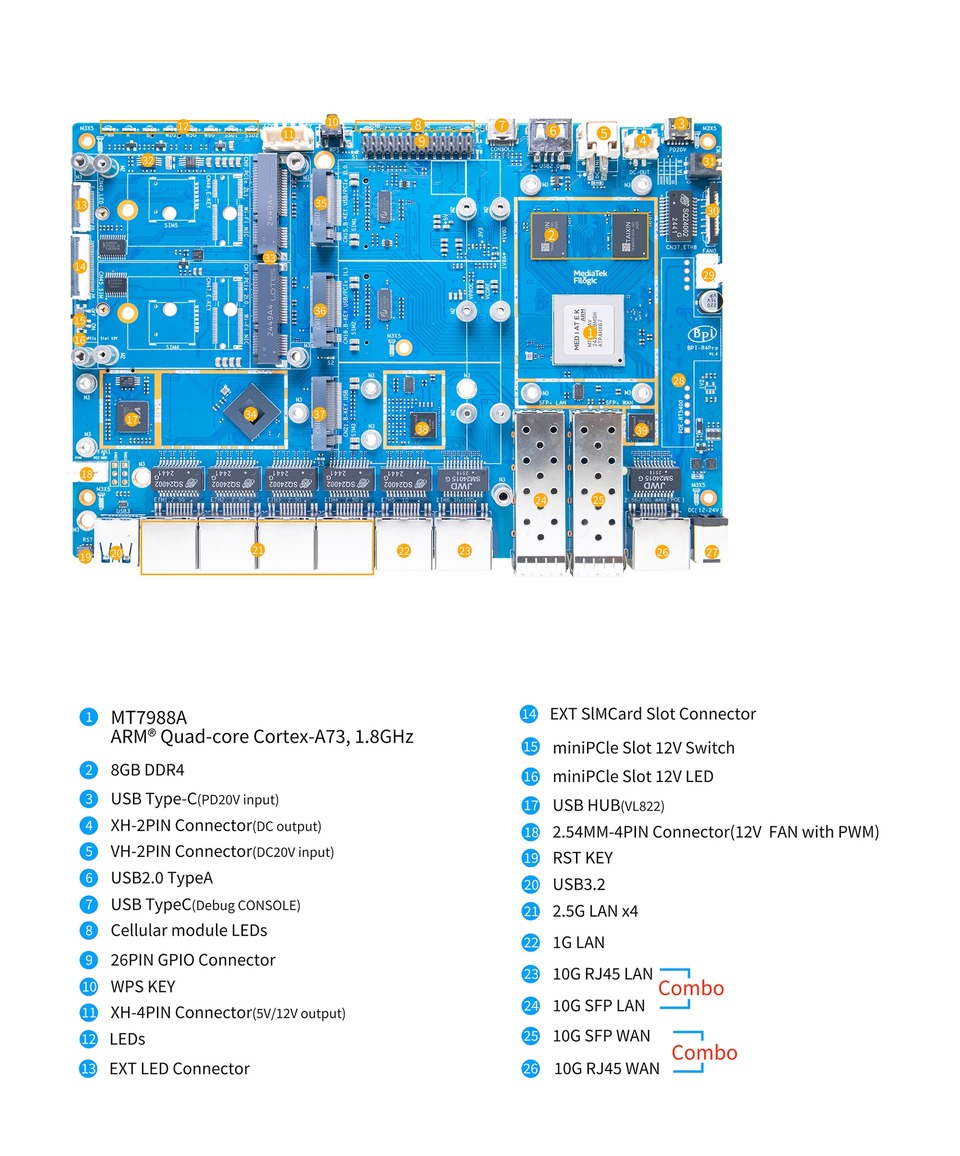

No. By the main description on Website. If you’re using the Banana Pi R4 PRO version, you don’t even need a UART-USB cable. You can use a standard USB-C cable. The console port is at item 07 on the board picture.

image960×1156 239 KB

1 Like
7

I can confirm: for the BPI R4 Pro, just use a standard USB-C cable to connect to the PC and you get an extra comm to connect to the serial. Pretty handy.

8

Yes, I merely meant that this board can also be debugged using TTL. Of course, it would be even more convenient if there were Type C ports.
