BPI-MT7615 802.11 ac wifi 4x4 dual-band PCIe module Mass production version

Banana Pi Router design BPI-R3/R3 Mini(MT7986)
1

BPI-MT7615 802.11 ac wifi 4x4 dual-band module Mass production version,All rf tests passed

MTK%20MT7615%201
MTK%20MT7615%201750Ă—605 112 KB

about MTK MT7615 chip:

MT7615 is a highly integrated Wi-Fi single chip which support 1733 Mbps PHY rate,It fully compies with IEEE 802.11ac and IEEE802.11 a/b/n standards,offering feature-rich wireless connecivity at high standards,and delivering reliable,cost-effective throughput from and extended distance.

MT7615 supports concurrent dual-band operation at 5GHz and 2.4GHz band(DBDC,Dual-Band-Dual-Concurrent0.It enables diversified applications that require one link at 2.4GHz band,and the other at less crowded 5GHz band simultaneously.

With the advent of 802.11ac,multiuser MIMO(MU-MIMO) is defined. Mt7615 supports MU-MIMO with defferent configurations.An AP is able to use its antenna drrays to transmit multiple frames to defferent clients at the same time and over the same frequency spectrum.

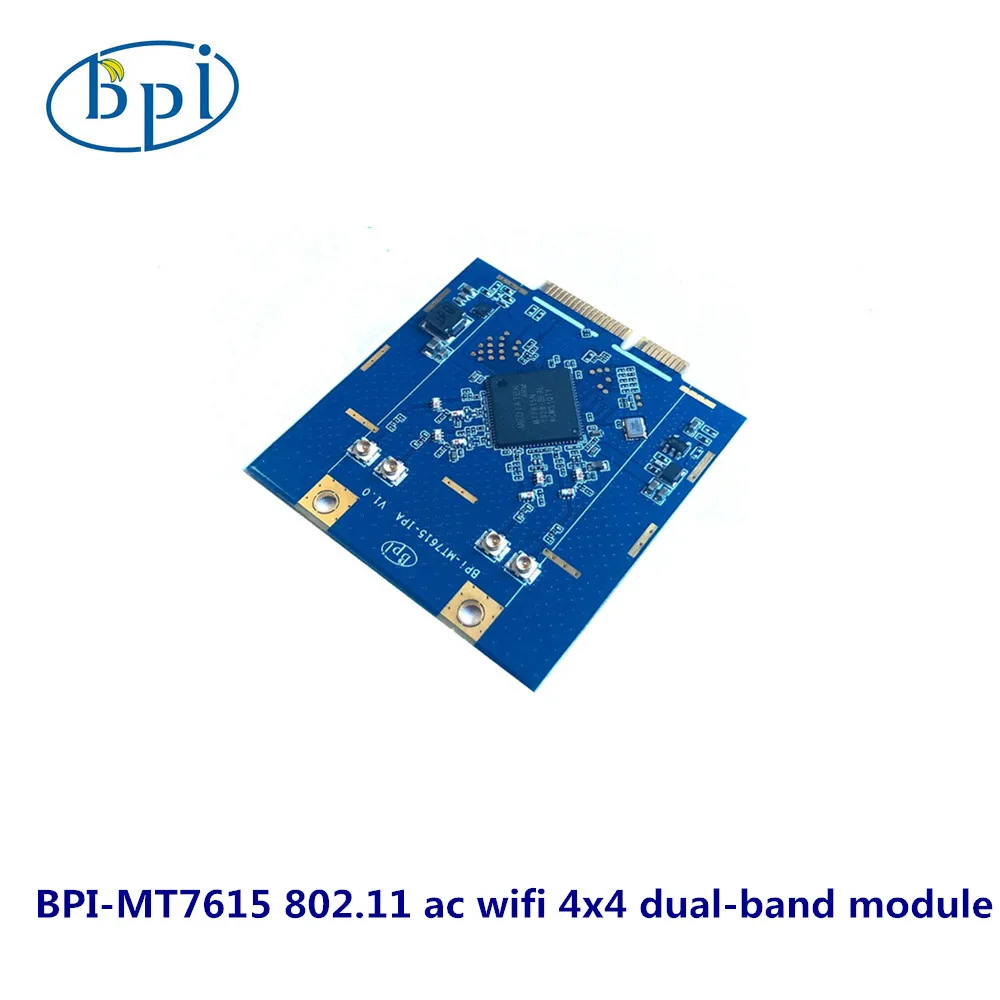

front and back:

MTK%20MT7615%207
MTK%20MT7615%207750Ă—407 101 KB

upstream driver link

https://git.kernel.org/pub/scm/linux/kernel/git/next/linux-next.git/tree/drivers/net/wireless/mediatek/mt76

wiki page , we will keeping update:

http://wiki.banana-pi.org/BPI-MT7615_802.11_ac_wifi_4x4_dual-band_module

if you want to buy sampe :

https://www.aliexpress.com/item/4000260974924.html?spm=2114.12010612.8148356.1.4f31785eThQhPe

for more please send mail to [email protected]

2
3

Form factor seems to be larger than here and like other mt7615. I thought it will be smaller card that fits in bpi-r2 without cutting gpio/power connectors

Btw. Driver is already in mainline linux (not only next): https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/drivers/net/wireless/mediatek/mt76

1 Like
4

To solve the heating and rf problem, we adjusted the hardware design.Can only increase

5

Do you have some benchmark results? Can you confirm that this device support max 2x2streams with 160MHz channel width, or 80+80!

6

Could you test it using an extender on r2 like this

?

7

I have test that wifi module on openwrt 18.06 4.19 kernel, it’s not working, the wlan0 interface can’t be up.

8

Have you added the driver? Imho 7615 driver was not integrated in 4.19…

9

I have test that MT7615 wifi with kmod-mt7615e driver in 4.19, it’s working. Must manually set mac address first.

10

does it not create a random mac?

11

Since an invalid MAC address could be undetected on this card and also won’t generate a random address, you need to set it manually.

It may be fixed by applying this patch.

12

MT7615 module have support BPI-R2, BPI-R64, and We have tested the parametric performance of module 7615 in the laboratory.To achieve the optimal

BPI-R64+MT7615 test wifi function with openwrt

http://wiki.banana-pi.org/BPI-R64_%2B_MT7615_function_test

13

Hello, I’m testing the card on BPI-R2 since a few weeks now. The driver included into the 5.4 kernel version is working fine (tested using the OpenWrt version contained in this project; https://www.openmptcprouter.com/). There is still a very annoying issue that prevents a real production usage of the card!: it is not possible to set the power which is stuck to 5dBm for all wifi mode and frequencies.

14

Hey @sinovoip, looking at product page on AliExpress I see that it is only “EMS” that is available as a shipping method to Russia which makes the delivery cost approx the same as the cost of product itself. In other words it makes buying this wifi module cost-prohibiting with the end-user price being ~100 USD - it is way to much for a simple WiFi card IMO. Are there any plans on adding other shipment methods like “AliExpress Standard Shipment” so delivery cost won’t be that expensive?

15

you can send mail to [email protected] , she will full support you

16

you can send mail to [email protected] , she will let R&D to support you.

1 Like
17

Hello all,

Tell me please, if you know, will this board appear on sale in the foreseeable future?

https://aliexpress.ru/item/4000260974924.html?sku_id=10000001058936593&spm=2114.12010612.8148356.1.4f31785eThQhPe

It is currently not available anywhere.

If not, can you recommend another compatibility with BPI-R64 mPCIe board with 802.11ac functionality?

18

I have tested the BPI-MT7615 on R2 . It’s up to 1Gpbs. System information： Firmware Version|OpenWrt 21.02.2 r16495-bf0c965af0 / LuCI openwrt-21.02 branch git-22.046.85957-59c3392| |Kernel Version|5.4.179| |Local Time|2022-02-16 21:26:29| %E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20220324172359 %E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20220324172907 %E5%BE%AE%E4%BF%A1%E5%9B%BE%E7%89%87_20220324174409
