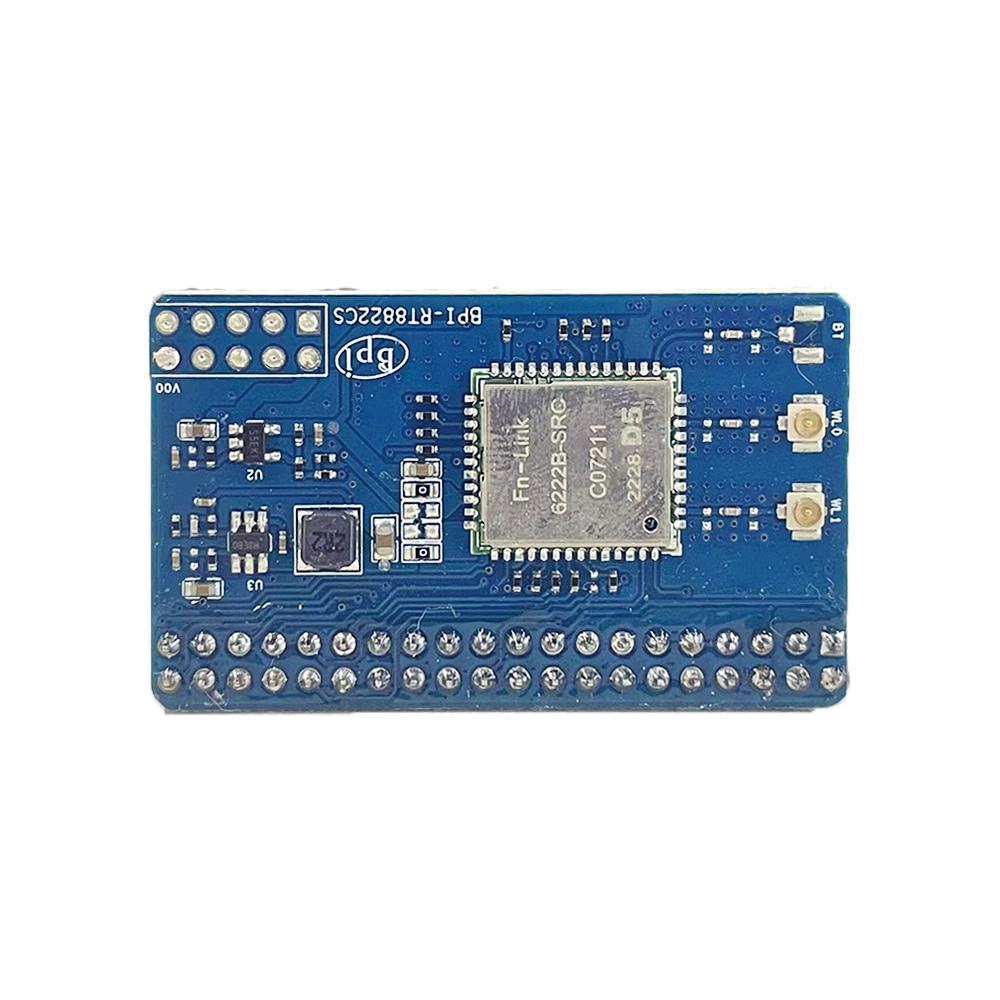

BPI-M5 rtl8822cs WiFi&BT board,SDIO interface, 802.11 a/b/g/n/ac 2T2R WiFi and Bluectooch 5.0

[sinovoip (bpi team)]

BPI-M5 WiFi&BT board, 802.11 a/b/g/n/ac 2T2R WiFi and Bluectooch 5.0

just module just support BPI-M5 and BPI-F2P

sdio wifi module spec:

BL-M8822CS1-S(VS)_Product_Specification_V1.0_(BT5.0).pdf

how to use:

http://wiki.banana-pi.org/Getting_Started_with_BPI-M5#Wifi.2FBT_support

rtl8822cs test on BPI-M5 with Android

1. rtl8822cs linux sta 867Mb/s:

2. rtl8822cs linux ap 867Mb/s :

Also can use Banana Pi Wifi&BT 4.2 expansion Board, standard USB interface

Banana Pi rtl8821cu Wifi&BT 4.2 expansion Board, standard USB interface

Banana Pi Wifi&BT 4.2 expansion Board, standard USB interface, so support all open source boards via USB port. IEEE 802.11b/g/n/ac(1T1R) USB WLANAnd BT Module: BL-M8821CU1 is the module designed by a highly integrated IEEE802.11a/b/g/n/ac MAC/Baseband/RF WLAN and Bluetooth Baseband/RF single chip. It combines a WLAN MAC, a 1T1R capable WLAN baseband, BT Protocol (LM , LL and LE),BT Baseband, modem, and WLAN/BT RF in a single chip. The module provides a complete solution for ahigh-performance …

[sinovoip (bpi team)]

easy to buy sample :

12.0US $ |Banana Pi BPI M5 RTL8822cs WiFi&BT Board| | - AliExpress
