BPI-4G LTE module for banana pi (USB interface) public sale

[sinovoip (bpi team)]

BPI-4G LTE module for banana pi (USB interface) public sale

more about this module :

BPI-4G LTE module for banana pi (USB interface)

BPI-4G module for banana pi (USB interface) [BPI-4G 5] BPI-4G module (4G on board ) [BPI-4G onboard] BPI-4G module (use USB 4G expansion board ): [BPI-4G usb] BPI-4G module back: [BPI-4G back] 4G module on BPI-R2: [BPI-4G 6] 4G module on other banana pi with USB line connect: [BPI-4G 8]

How to use BPI-4G LTE module with BPI-R2

[31383737168841878] 1.Firstly, use R2 connects LTE module by USB or 14pin Headers. then execute command "lsusb" to have a look if R2 have drove the module. The red box is the id of 4G module. [image] After seeing this, execute command "ls /dev/ttyUSB*" to make sure the 4G module have been recognised as USB devs. [image] 2. Execute the "./ppp1.sh &" [image] then execute command “ifconfig -a”，you will see ppp0 [image] 3. Execute command ”wget -O speedtest-cli https://raw.githubusercontent…

easy to buy sample:

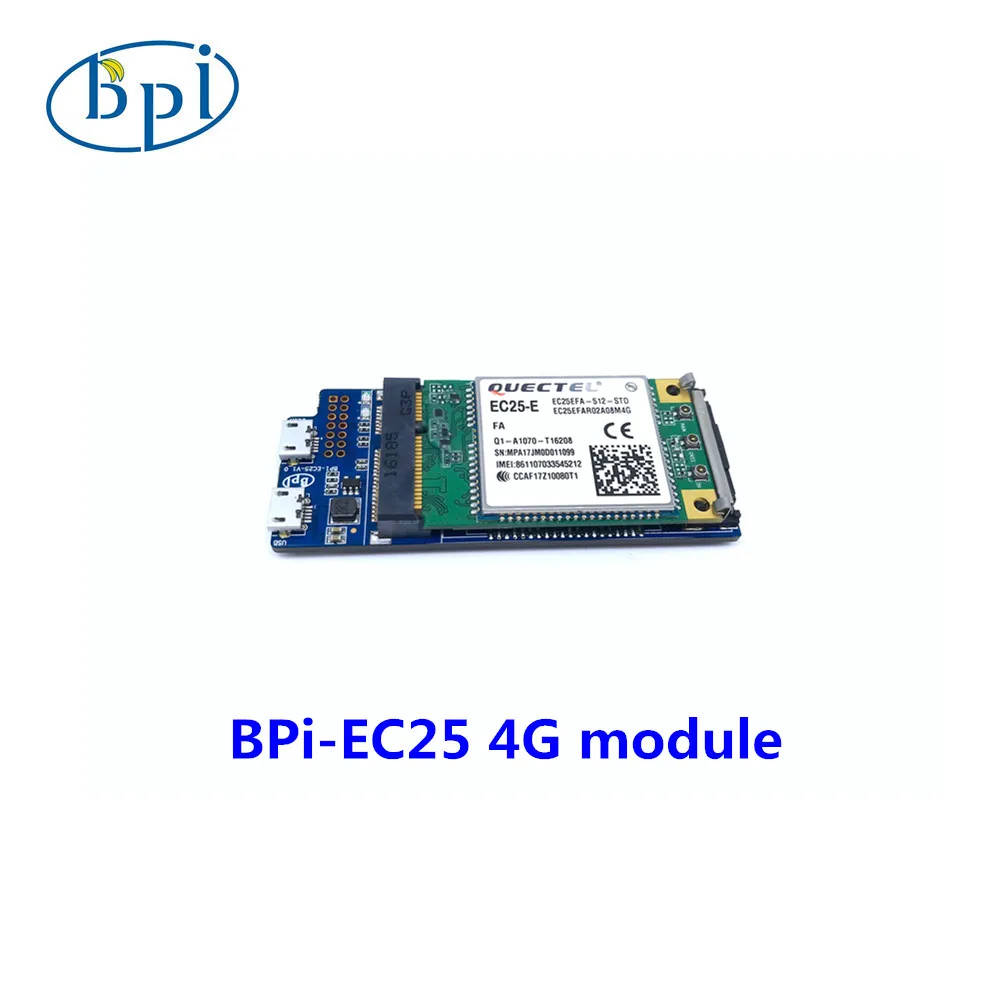

R$ 216.15 |Banana PIEC25 E 4G módulo, só se aplica para a Banana PI R2 bordo...

if you need more server ,please contact [email protected] ,

[orson (Greg)]

Hi.

Can you post links to international version of aliexpress? Using your link I end up in a different language (Portuguese???) and pressing “Go to Global Site (english)” I end up on aliexpress main page

Thank you and have a nice day.

[sinovoip (bpi team)]

Unboxing High Quality Banana Pi Bpi-Ec25 4g Full-Netcom Wireless Communication Module
