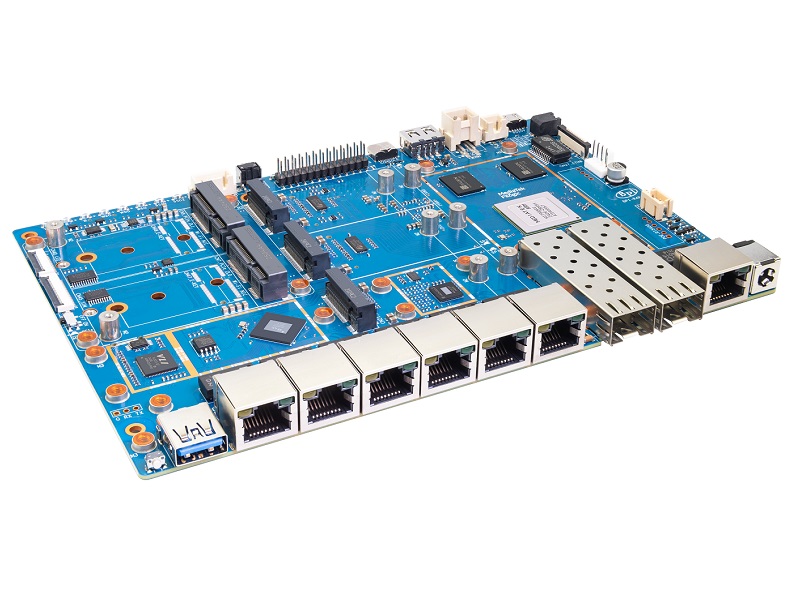

Banana Pi BPI-R4 Pro Wifi7 Router board with Mediatek MT7988A, 8G RAM 8G eMMC, 4x2.5G and 2x10G network port

Banana Pi BPI-R4 Pro Wifi7 Router board with Mediatek MT7988A, 8G RAM 8G eMMC, 4x2.5G and 2x10G network port, it is a update version for BPI-R4.

Key Features

  • MediaTek MT7988A Quad-core Arm Corex-A73,1.8GHz processor
  • 8GB DDR4
  • 8GB eMMC flash
  • 256MB SPI-NAND Flash
  • Micro SD card slot
  • 1x 10G SFP WAN
  • 1x 10G RJ45 WAN(combo with 10G SFP WAN)
  • 1x 10G SFP LAN
  • 1x 10G RJ45 LAN(combo with 10G SFP LAN)
  • 4x 2.5G RJ45 LAN
  • 1x 1G RJ45 LAN
  • 1x 1G LAN(FPC Connector)
  • 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi NIC
  • 2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD (PCIe can switch to M.2 B-KEY slot)
  • 3x M.2 B-KEY slots with USB3.2 for 5G Module
  • 1x USB3.2 slot
  • 1x USB2.0 slot
  • 1x USB TypeC Debug Console
  • 2x13 PIN Header for expanding application

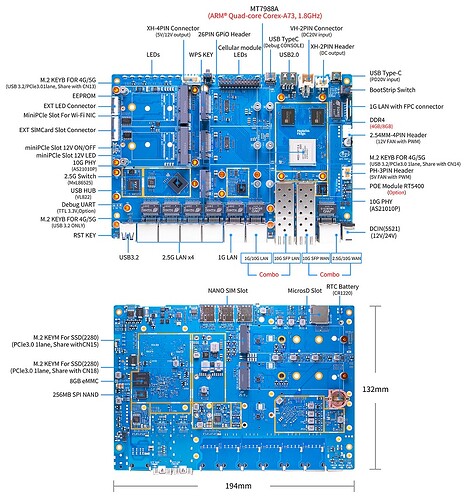

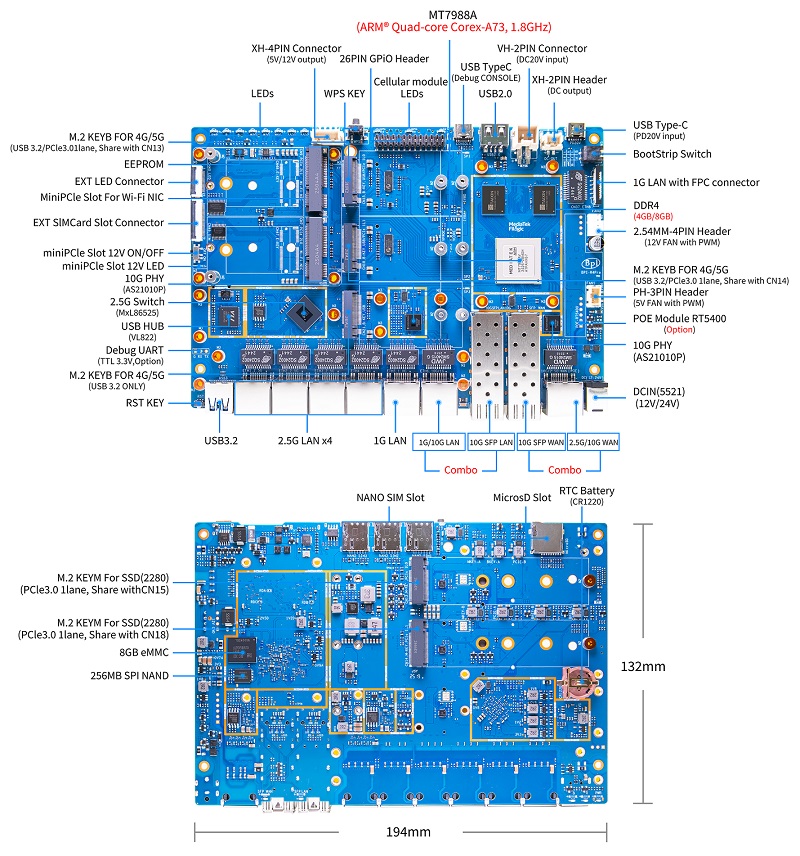

Hardware interface:

online wiki page: Banana Pi BPI-R4 Pro Wifi7 Router board design with Mediatek MT7988A | BananaPi Docs

which project are you want to do???

You should check your text using an AI grammar tool:

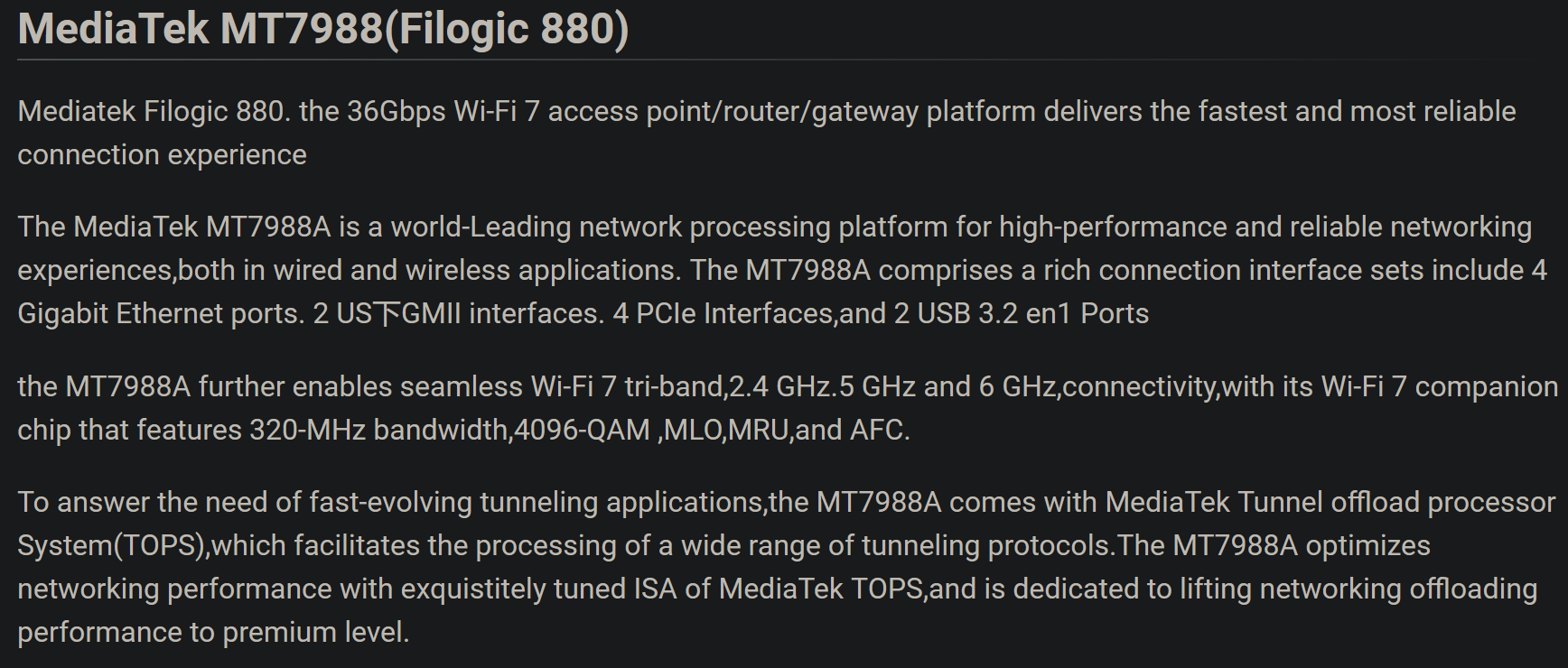

MediaTek MT7988 (Filogic 880)

MediaTek Filogic 880: The 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience.

The MediaTek MT7988A is a world-leading network processing platform for high-performance and reliable networking experiences, both in wired and wireless applications. The MT7988A offers a rich set of connectivity interfaces, including 4 Gigabit Ethernet ports, 2 USXGMII interfaces, 4 PCIe interfaces, and 2 USB 3.2 Gen 1 ports.

The MT7988A further enables seamless tri-band Wi-Fi 7 connectivity across the 2.4 GHz, 5 GHz, and 6 GHz bands, with its Wi-Fi 7 companion chip featuring 320 MHz bandwidth, 4096-QAM, MLO, MRU and AFC.

To meet the needs of rapidly evolving tunneling applications, the MT7988A comes equipped with the MediaTek Tunnel Offload Processor System (TOPS), which facilitates the processing of a wide range of tunneling protocols. The MT7988A optimizes networking performance with a finely tuned ISA of MediaTek TOPS, delivering premium-level offloading capabilities.
