Banana Pi BPI-M7 with Rockchip RK3588 design, 8/16/32G,RAM 64/128G eMMC

Banana Pi Rockchip design BPI-M7/BPI-W3/BPI-AIM7(RK3588)
1

Banana Pi BPI-M7 with Rockchip RK3588, 8/16/32G,RAM 64/128G eMMC,wifi6 support . 2x2.5G port ,1xHDMIout ,2x USB3.0,2xTYPE-C,2x MIPI CSI interface and 1x MIPI DSI interface, 1x M.2 KEY M interface,40 PIN GPIO ,Mini size just 92x62mm

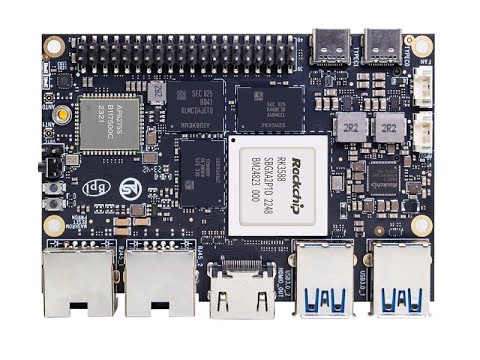

Banana Pi BPI-M7 1
Banana Pi BPI-M7 1800×600 101 KB

Key Features

  • PI-co ITX form factor(2.5 inch, 92 x 62mm)
  • RK3588 powered, 8nm manufacturing process
    • Quad A76 2.4Ghz + Quad A55 1.8Ghz
    • Mali G610MC4 GPU(up to 5 channel 4K UI)
    • 6T NPU
    • 8K 10bit decoder, 8K encoder
  • Support WiFi 6 and BT5.2
  • Support PCIe 3.0 x4 NVMe SSD
  • Triple display support(with HDR)
    • One HDMI 2.1 up to 8K@60FPS
    • One USB C with DP up to 8K@30FPS
    • One MIPI DSI up to 4K@60fps
  • Two 2.5G Ethernet
  • 2x USB 3.0 interface
  • 2x MIPI CSI camera interface
  • Offer 8GB/16GB/32GB(LPDDR4x) ram options
  • Linux kernel 5.10
  • Debian Buster/Android 12

Hardware interface：

Banana Pi BPI-M7 interface
Banana Pi BPI-M7 interface800×968 240 KB

Banana Pi BPI-M7 (Armsom Sige7) RK3588 SBC Hardware interface introduction

BPI-M7 with RK3588:Banana Pi BPI-M7 | BananaPi Docs

BPI-W3 with RK3588 : Banana Pi BPI-W3 | BananaPi Docs

BPI-RK3588 Kit : BPI-RK3588 Core board and development Kit - Banana Pi Wiki

1 Like
2
3

When to publish on china taobao?

4

we now just ready 20 pcs sample , and mass production and public sale will take some time

5

Is it, BPI-M7 or, BPI-W3 ?

You point to a BPI-W3 wiki.

The BPI-M7 looks interesting to me.

6

Fixed the wiki link…

1 Like
7

I was wondering, does sinovoip supply a version of U-Boot that supports boot from nvme?

Edit:

Actually the following patch already looks very promising, as I assume the board is almost the same (in the respect of nvme booting that is).

[PATCH RESEND 2/2] arm: dts: rockchip: rock-5b: add support for PCIe3 and NVMe (denx.de)

8

Bananna Pi BPI-M7 RK3588 Opensource SBC test 2 5G network

9

Banana Pi BPI-M7 rockchip RK3588 board GPU and CPU performance test

10

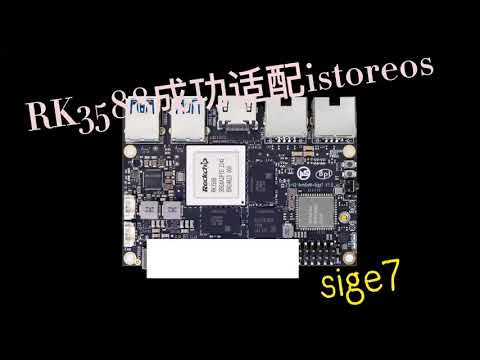

Banana Pi BPI-M7 Rockchip RK3588 open source SBC run istoreos demo

11

It looks like what I am doing on RPi 2 Pro at the moment: putting a dual 2.5GbE r8125 on the R2 Pro.

R2 Pro has RK3568, M7 is 3588.

Right now, IPsec aes-128-cbc with sha1 on RPi 2 Pro is only 330Mbps with nft conntrack, hopefully baylibre’s hardware cryto driver could soon work, which applies to both rk3568/3588.

12

Banana Pi BPI-M7 (Armsom Sige7) RK3588 SBC Case design.

Banana Pi BPI-M7 Case 1
Banana Pi BPI-M7 Case 1800×464 61 KB

1 Like
13

Ok, this article is saying they are available for purchase.

-QUESTION- How does this compare to those mini pc/soc ?

15

Banana Pi BPI-M7(Armsom sige7) Ubuntu22 04 Linux test

16

Banana Pi BPI-M7 RK3588 SBC run armbian Linux

17

Does @sinovoip also offer any thermal solution for this board?

I think it will be somewhat crippled without it. Users might want to choose another manufacturers rk3588 board that has a solution which can readily be mounted.

Or is it inside the case? I cannot find any picture of the inside of it (no cooling seen in the video).

1 Like
18

Banana Pi BPI-M7 review:

19

Looking for your next #Homelab partner? Banana Pi BPI-M7 #Sige7 powered by #RK3588 and #Sige1 powered by #RK3528 are standing by,ready to assist.#NAS #Rockchip #armbian #raspberrypi5 #AI #MakerBig thanks for review！Novos SBCs da Armsom de Entrada e o Top
