Banana Pi BPI-M2S with Amlogic A311D,2 Gigabit port . 4G RAM and 16 GB eMMC flash

Banana%20pi%20BPI-M2S%20bannar

BananaPi BPI-M2S new design with Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU,support Camera and MIPI-CSI interface ,HDMI output,2 Gigabit port . 4G RAM and 16 GB eMMC flash

Banana%20Pi%20BPI-M2S%201

main spec:

  • Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU
  • NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS
  • 4GB LPDDR4 RAM
  • 16GB eMMC flash (Max 128G)
  • support MIPI DSI Camera interface
  • support MIPI CSI Screen interface
  • 2 Gigabit port
  • HDMI output
  • 40 PIN GPIO
  • support Android and Linux system.

hardware inerface:

Banana%20Pi%20BPI-M2S%20interfact

PoE Wifi&BT support

Banana%20Pi%20BPI-M2S%20with%20PoE%20wifi%20bt

Banana PI BPI-M2S Amlogic A311D / S922X

Amlogic A311D datasheet: https://drive.google.com/file/d/1SRAY_RDxKhw819uyo9H13zNN2wlG6LDq/view?usp=sharing

we will keep update on wiki page:

http://wiki.banana-pi.org/Banana_Pi_BPI-M2S

2 Likes

Let me know if you need testers. Would love to try this board out.

1 Like

This is impressive, Which OS do you plan to install by default on this device ?

Do you have any plan to work with Firewall OS other then OpenWRT ? Like IpFire and OpnSense.

I can try IPFire to work on it once mainline uboot is upstreamed.

1 Like

test android system on Banana Pi BPI-M2S

Any update on samples for developers to try different OS?

Hopefully COVID-19 isn’t disrupting your supply chain too much and we’ll see the BPI-M2S released soon. Stay safe!

thank you , we have finished hardware debug ,will release soon.

Yesterday’s Dongguan lockdown probably didn’t help. :cry: Perhaps an April or May release?

What would the ballpark pricing be in USD?

“The Guangzhou area is also likely to be in lockdown”

So sorry you have to go through this! Best wishes for a speedy and safe return to manufacturing.

Hooray!!! https://mobile.twitter.com/sinovoip/status/1518770382395699200

Banana Pi BPI-M2S with Amlogic S922x,2 Gigabit port . 4G RAM and 16 GB eMMC flash

Banana%20Pi%20BPI-M2S%201

BananaPi BPI-M2S with Amlogic A311D/S922X Android , Debian ,Ubuntu Linux image release

https://wiki.banana-pi.org/Banana_Pi_BPI-M2S#System_image

BSP source code : https://github.com/BPI-SINOVOIP/BPI-M2S-bsp

Android 9 :https://github.com/BPI-SINOVOIP/BPI-A311D-Android9

Banana Pi BPI-M2S public sale

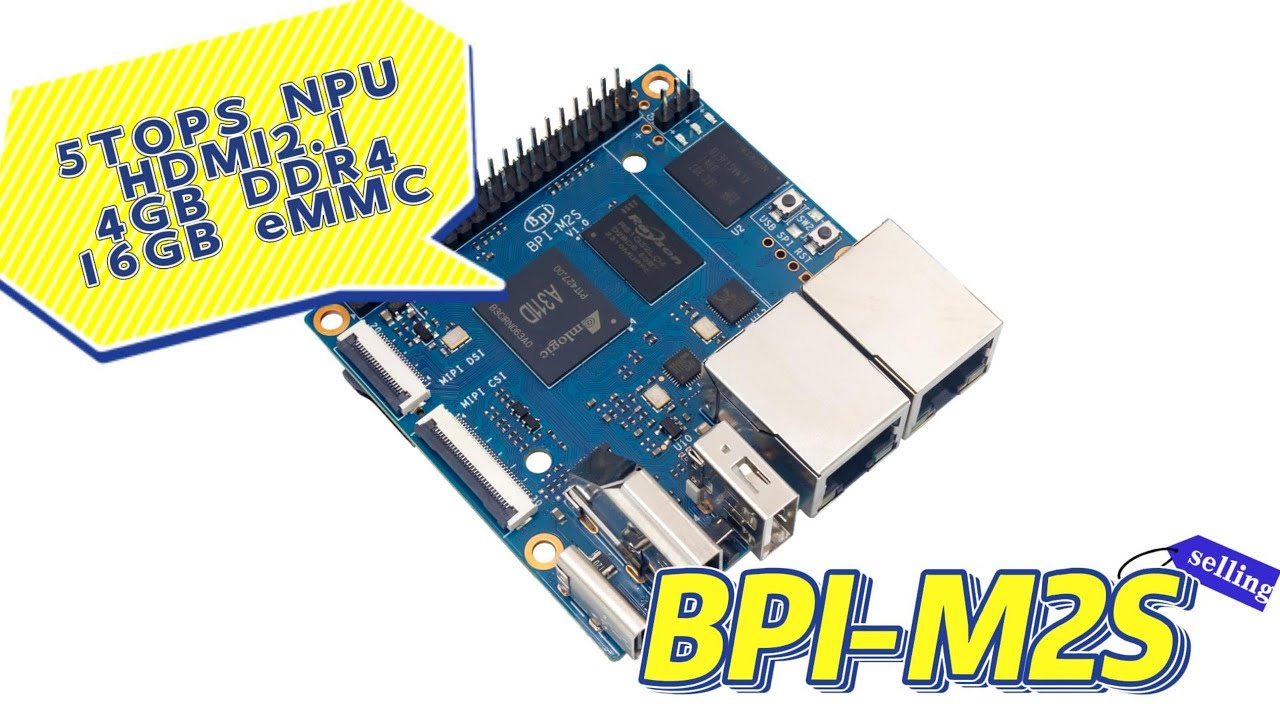

BananaPi BPI-M2S SBC with Amlogic A311D hardware review. 4G RAM ,16 G eMMC,power than raspberry pi

#Raspberrypi #bananapi #sbc #opensource #A311D
