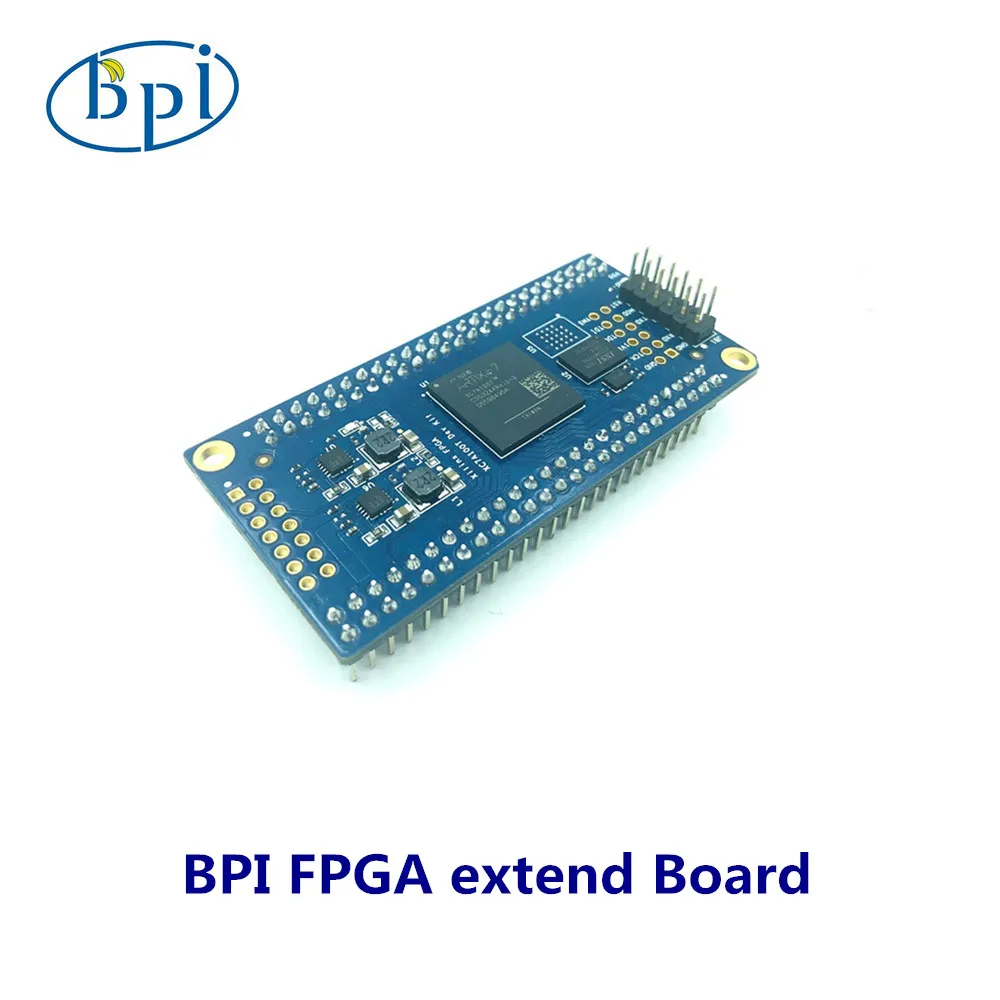

Banana Pi BPI-F2S FPGA board with Xilinx Artix-7 XC7A100T-2CSG324C/XC7A100T-2CSG324I

Xilinx%20Artix-7%20FPGA%201
Xilinx Artix-7 FPGA 1.JPG750×525 98.7 KB

Xilinx%20Artix-7%20FPGA%202
Xilinx Artix-7 FPGA 2.JPG750×540 111 KB

Key Features:

  • Xilinx Artix-7 XC7A100T-2CSG324C/XC7A100T-2CSG324I
  • Commercial temperature grade (industrial on request)
  • 32 MByte Flash memory
  • 2 x 50 pin headers with 2.54 mm pitch, ideal for breadboard use
  • 1.8 V single supply with on board voltage regulators
  • 95 I/O’s (42 + 42 + 3 + 8)
  • 25 MHz system clock (100 MHz can be customized on request)
  • I2C EEPROM
  • 7.3 x 3.5 cm form factor
  • JTAG/UART connector
  • One user LED
  • optional HyperRAM (8 bis 32 MByte) or HyperFlash
  • HyperRAM from Cypress :http://www.cypress.com/products/hyperram-memory
  • HyperFlash from Cypress http://www.cypress.com/products/hyperflash-nor-flash-memory

more please see wiki page:

http://wiki.banana-pi.org/Banana_Pi_BPI-F2S

Banana Pi BPI-F2S with FGPA board for SOC education and FPGA training practice suite

easy to buy sample :
