BPI NB-IoT Linaro 96Boards with Quecte BC95 module developent board


(bpi team) #1

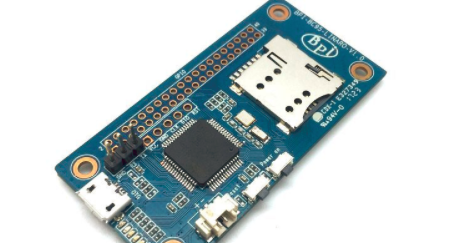

BPI NB-IoT Linaro 96Boards with BC95 module developent board ,this is banana pi team first board for Linaro 96Board standard development board.

MCU: STM32F103(LD)

NB-IoT module : Quecte BC95

Hardware interfact:

BPI NB-IoT Linaro 96Boards developent board 40PIN GPIO (CON1) define:

Quecte BC95 datasheet (CN)

https://drive.google.com/file/d/0B4PAo2nW2KfnWnRVczZXV3lPZmc/view?usp=sharing

STM32F103(LD) datasheet.

EN: https://drive.google.com/file/d/0B4PAo2nW2KfnUm1na2tSOXQzNzg/view?usp=sharing

CN: https://drive.google.com/file/d/0B4PAo2nW2KfneUdMMzktLVNZSlU/view?usp=sharing

for now , the NB-IoT module too expensive, so we not publice sale it . if anyone want sample ,please send mail to judyhuang@banana-pi.com order sample .


(Simon) #2

No access to the google drive.


(Simon) #3

these 2 sharing are not open access. you shared UN-accessible shares.


(bpi team) #4

please try again ,i have fixed this issue.


(Catalin Doaga) #6

Hello, i have this board, but i can’t seem to find any documentation, support or reference page of it, therefore donno how to comunicate with. I even searched on 96Boards and Linaro but no info about the product. What platform and language does it use?


(Hao Wang) #7

Hi,this product is STM32 development platform, combined Quecte BC95.


(Hao Wang) #8

Hi,you can look at this page:

BPI NB-Iot Linaro 96Boards Easy Development Guide

github:https://github.com/yelvlab/BPI_NB-IoT_Linaro_96Boards


(bpi team) #9

BPI NB-Iot Linaro 96Boards LiteOS github update


(Isuru Chathuranga) #11

Please check our blog post to use this with Arduino IDE -


BPI NB-Iot Linaro 96Boards Easy Development with Arduino
