It could be an issue when dsa port involved. So just leave the bridge and try your original setup without.
I’m not exactly sure what you mean … In the testing setup: the bridge interface is the only intrface with an IP.
PC1 is connected via SFP-LAN and LAN1 to a internal bridge on the PC itself and to the bridge of the BPI-R4. it used to be a bonding link BPI-R4<=>PC1 and bondPC1 was connected to br-lan, but I broke it and performed testing with sfp-lan and lan1 connected to the internal bridge.
I performed testing with sfp-lan (xor) lan1 up and did the command unmounting and remounting every time to work around the file caching of linux. on both interfaces, the speed was way above 100mbit
So, I’m not sure I get what you’d like me to try…
edit: or did you mean: both PCs on a lan1 / lan2 interface? that is 1gbit. I tested, based on your suggestion, how fast the BPI would copy files from PC1 to internal /dev/null, so traffic speed is measured without actually switching between ethernet ports. Traffic speed from PC1 to PC2 when both are connected to DSA is 1gbit
Test only on sfp-lan without bridge and bonding. Same on the other side (sfp-wan - pc2).
You can give the sfp an ip adress on the mac (eth1/2)
Hi to all.
I have xPON stick HSGQ which is the same as ODI DFP-34X-2IY3 (APC) but V8, not V6 curcuit board plugged to Banana Banana BPI-R3. Banana works at OpenWrt 24.10.1 r28597-0425664679 / LuCI (HEAD detached at 2ac26e56) branch 25.103.51521~2ac26e5 with kernel 6.6.86.
As I know the one of different between V6 and V8 is that V8 eeprom can be changed only by coding board. But I can be wrong.
As I understand at the time there is no necessary quirk record for this stick.
So, the stick is accessible at 1Gbit mode - 1000baseX/Full but with auto negotiation strictly OFF
It is enough for me at the time.
Of course 2,5 Gbit would be prefferable.
But there is ONE big incompatability - tre stick is accessible without fiber cable plugged. But just after patch cord is plugged the stick is disapeared.
And ethertool show:
: RX_LOS implemented, inverted
Option
: TX_FAULT implemented
Option
So, I founded that byte at 0x41 of 0x50 eeprom has to be changed as well as 0x5f checksum byte. Now 0x41 = 0x1C, but have to be 0x1A (I can not check it yet). I tried to use i2csfp byte 0x50 0x41 0x1A -p some password, as well as i2csfp byte 0x50 0x5f 0xFF -p some password But it didn’t help. And after rebooting the stick eeprom seems not changed. Temporarily solution i2csfp sfp-1 eepromfix -V OEM -N SFP-2G5 -p 0xffffffff helped. But this have to be applied before the fiber plugged and after rebooting these settings is not here as follow unplug fiber, apply command and plug fiber again is necessary.
Could please some helps me ?
@frank-w : I’m sorry I did not reply to you earlier, but the issue seems to be the transceiver; one gave me 2.5GbE speeds, the other one just 100mbit. Right now, I replaced both with a “I claim to be” aquantia phy … as far as I understand in other posts, those should have necessary settings for what I want to try.

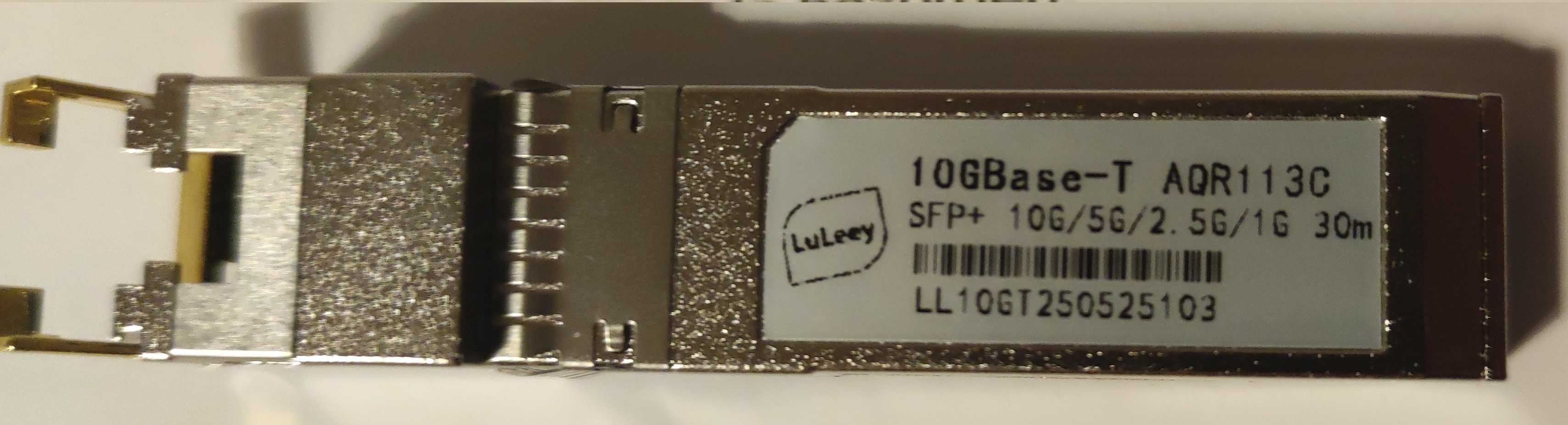

However, can someone tell me if this IS the case at all? The picture says so, and the dmesg off course doesn’t say anything, but also I do not see anything of the module in sfp.c kernel code. Could someone please tell me if the picture is what it claims to be? @ericwoud : I tried your beautiful i2csfp utility, but could not read the common i2c pages
Identifier : 0x03 (SFP)
Extended identifier : 0x04 (GBIC/SFP defined by 2-wire interface ID)
Connector : 0x07 (LC)
Transceiver codes : 0x10 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
Transceiver type : 10G Ethernet: 10G Base-SR
Encoding : 0x06 (64B/66B)
BR Nominal : 10300MBd
Rate identifier : 0x00 (unspecified)
Length (SMF) : 0km
Length (OM2) : 80m
Length (OM1) : 20m
Length (Copper or Active cable) : 0m
Length (OM3) : 300m
Laser wavelength : 850nm
Vendor name : OEM
Vendor OUI : 00:1b:21
Vendor PN : ZK-10G-TX
Vendor rev : 1
Option values : 0x00 0x1a
Option : TX_DISABLE implemented
BR margin max : 0%
BR margin min : 0%
Vendor SN : 2505010443
Date code : 250412
Optical diagnostics support : Yes
Laser bias current : 6.000 mA
Laser output power : 0.5000 mW / -3.01 dBm
Receiver signal average optical power : 0.4000 mW / -3.98 dBm
Module temperature : 70.36 degrees C / 158.65 degrees F
Module voltage : 3.3400 V
Alarm/warning flags implemented : Yes
Laser bias current high alarm : Off
Laser bias current low alarm : Off
Laser bias current high warning : Off
Laser bias current low warning : Off
Laser output power high alarm : Off
Laser output power low alarm : Off
Laser output power high warning : Off
Laser output power low warning : Off
Module temperature high alarm : Off
Module temperature low alarm : Off
Module temperature high warning : Off
Module temperature low warning : Off
Module voltage high alarm : Off
Module voltage low alarm : Off
Module voltage high warning : Off
Module voltage low warning : Off
Laser rx power high alarm : Off
Laser rx power low alarm : Off
Laser rx power high warning : Off
Laser rx power low warning : Off
Laser bias current high alarm threshold : 15.000 mA
Laser bias current low alarm threshold : 1.000 mA
Laser bias current high warning threshold : 13.000 mA
Laser bias current low warning threshold : 2.000 mA
Laser output power high alarm threshold : 1.9952 mW / 3.00 dBm
Laser output power low alarm threshold : 0.1584 mW / -8.00 dBm
Laser output power high warning threshold : 1.5848 mW / 2.00 dBm
Laser output power low warning threshold : 0.1778 mW / -7.50 dBm
Module temperature high alarm threshold : 95.00 degrees C / 203.00 degrees F
Module temperature low alarm threshold : -50.00 degrees C / -58.00 degrees F
Module temperature high warning threshold : 90.00 degrees C / 194.00 degrees F
Module temperature low warning threshold : -45.00 degrees C / -49.00 degrees F
Module voltage high alarm threshold : 3.6000 V
Module voltage low alarm threshold : 3.0000 V
Module voltage high warning threshold : 3.5000 V
Module voltage low warning threshold : 3.1000 V
Laser rx power high alarm threshold : 1.1220 mW / 0.50 dBm
Laser rx power low alarm threshold : 0.0199 mW / -17.01 dBm
Laser rx power high warning threshold : 1.0000 mW / 0.00 dBm
Laser rx power low warning threshold : 0.0223 mW / -16.52 dBm
*EDIT: dumped wrong trainsceiver, so SN had to be corrected
Make sure you do not have this problem first:
As for the AQR113C:
It really depends how the mdio-i2c bridge is implemented on your sfp module, if implemented at all… I think the aqr113c management interface is only available via mdio, so if you are lucky, it has an extra IC that has rollball on it. So you can try a fixup for using rollball, with or without the 4 seconds delay.
The 2.5G luleey has rollball, so the 10G may also have it.
Otherwise, if the phy registers are not accessible, it is stuck in 10G speed with rate adaptation. The eeprom should provide the correct info. This means that the mac and mac-side of the phy are always running at full speed, even when slower copper is connected. It also works, but is not very energy efficient.
Anyway, if the 113C driver supports switching interfaces, still need to look it up.
The main purpose here would indeed be power saving features, the aqr113C supports eee, so it would be nice from a thermal / power perspective. If the i2c pages on the 2.5gbe module could be read, is that enough to say 'I do not have this m.2 problem?
Yes,when having the m.2 issue,the complete i2c bus including the mux goes down. So you cannot read the sfp vendor/product information.
I meant: I have a device in the m.2 slot, When using it with the 2 2.5gbe transceivers, I can read the i2c sfp pages, When replacing those with the 10gbe transceivers, the output of Eric’s i2csfp tool is:
./i2csfp sfp1 eepromdump
0x50:
0 1 2 3 4 5 6 7 8 9 a b c d e f 0123456789abcdef
00: 03 04 07 10 00 00 00 00 00 00 00 06 67 00 00 00 ............g...
10: 08 02 00 1e 4f 45 4d 20 20 20 20 20 20 20 20 20 ....OEM
20: 20 20 20 20 00 00 1b 21 5a 4b 2d 31 30 47 2d 54 ...!ZK-10G-T
30: 58 20 20 20 20 20 20 20 31 20 20 20 03 52 00 89 X 1 .R..
40: 00 1a 00 00 32 35 30 35 30 31 30 34 34 33 20 20 ....2505010443
50: 20 20 20 20 32 35 30 34 31 32 20 20 68 f0 03 9b 250412 h...
60: 9f 00 11 6d 82 26 b8 38 2a 2f 53 b4 10 06 7d e3 ...m.&.8*/S...}.
70: 18 2f eb 00 00 00 00 00 00 00 00 00 37 9e f6 d5 ./..........7...
80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
a0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
b0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
c0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0x51:
0 1 2 3 4 5 6 7 8 9 a b c d e f 0123456789abcdef
00: 5f 00 ce 00 5a 00 d3 00 8c a0 75 30 88 b8 79 18 _...Z.....u0..y.
10: 1d 4c 01 f4 19 64 03 e8 4d f0 06 30 3d e8 06 f2 .L...d..M..0=...
20: 2b d4 00 c7 27 10 00 df 00 00 00 00 00 00 00 00 +...'...........
30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
40: 00 00 00 00 3f 80 00 00 00 00 00 00 01 00 00 00 ....?...........
50: 01 00 00 00 01 00 00 00 01 00 00 00 00 00 00 f1 ................
60: 4d 2f 82 78 00 00 00 00 0f a0 00 00 00 00 82 00 M/.x............
70: 05 00 00 00 05 00 00 00 00 00 00 ff ff ff ff 00 ................
0x51 PAGE 0x00:
0 1 2 3 4 5 6 7 8 9 a b c d e f 0123456789abcdef
80: 43 4f 55 49 41 38 4e 43 41 41 31 30 2d 32 34 31 COUIA8NCAA10-241
90: 35 2d 30 33 56 30 33 20 01 00 46 00 00 00 00 c6 5-03V03 ..F.....
a0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
b0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 aa aa ................
c0: 53 46 50 2d 31 30 47 2d 53 52 20 20 20 20 20 20 SFP-10G-SR
d0: 20 20 20 20 33 32 00 00 00 00 00 00 00 00 00 35 32.........5
e0: 1e 28 2e 2e 31 34 29 36 00 00 00 00 00 00 00 00 .(..14)6........
f0: 00 00 00 00 00 66 00 00 ff ff ff ff 00 00 00 00 .....f..........
0x51 PAGE 0x01:
0 1 2 3 4 5 6 7 8 9 a b c d e f 0123456789abcdef
80: 43 4f 55 49 41 38 4e 43 41 41 31 30 2d 32 34 31 COUIA8NCAA10-241
90: 35 2d 30 33 56 30 33 20 01 00 46 00 00 00 00 c6 5-03V03 ..F.....
a0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
b0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 aa aa ................
c0: 53 46 50 2d 31 30 47 2d 53 52 20 20 20 20 20 20 SFP-10G-SR
d0: 20 20 20 20 33 32 00 00 00 00 00 00 00 00 00 35 32.........5
e0: 1e 28 2e 2e 31 34 29 36 00 00 00 00 00 00 00 00 .(..14)6........
f0: 00 00 00 00 00 66 00 00 ff ff ff ff 00 00 00 00 .....f..........
0x51 PAGE 0x02:
0 1 2 3 4 5 6 7 8 9 a b c d e f 0123456789abcdef
80: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
90: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
a0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
b0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
c0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
d0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
e0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
f0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
0x51 PAGE 0x03:
0 1 2 3 4 5 6 7 8 9 a b c d e f 0123456789abcdef
80: 00 00 00 ff ff ff ff ff ff ff ff ff ff ff ff ff ................
90: ff ff 00 00 ff ff ff ff ff ff ff ff ff ff ff ff ................
a0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
b0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
c0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
d0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
e0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................
f0: ff ff ff ff ff 56 31 32 ff ff 04 00 63 73 77 77 .....V12....csw
edit2 the command was wrong, my mistake
That looks like the write protect password, same as the 2.5G module.
So as far as I can see, this is rollball, so add a fixup to sfp.c to set the rollball protocol.
The rollball protocol supports C45 communication only, no C22. So hopefully the AQR113C driver only uses c45. For the realtek phy, we needed to add a new c45-only driver instance.
As with others, the extcc byte (offset 0x24 on address 0x50) is 0x00, so the eeprom does not report which interface should be used. So this needs to be set in the fixup, or edit the eeprom, using the password (automatically).
If your kernel is new enough, phylink.c can handle the fact that the mtk pcs does not support inband negotiation at 2500basex.
I tried to apply a quirk (as you described), but it doesn’t seem to work like we’d expect:
--- a/drivers/net/phy/sfp.c
+++ b/drivers/net/phy/sfp.c
@@ -515,6 +515,7 @@
SFP_QUIRK_F("OEM", "SFP-GE-T", sfp_fixup_ignore_tx_fault),
SFP_QUIRK_F("OEM", "SFP-10G-T", sfp_fixup_rollball_cc),
+SFP_QUIRK_F("OEM", "ZK-10G-TX", sfp_fixup_rollball_cc),
SFP_QUIRK_M("OEM", "SFP-2.5G-T", sfp_quirk_oem_2_5g),
SFP_QUIRK_M("OEM", "SFP-2.5G", sfp_quirk_oem_2_5g),
SFP_QUIRK_M("OEM", "SFP-2.5G-BX10-D", sfp_quirk_2500basex),
But when booting the kernel, somehow, the module seems to fail validation:
[ 18.881557] mtk_soc_eth 15100000.ethernet sfp-wan: configuring for inband/10gbase-r link mode
[ 18.913436] bondjp: (slave sfp-wan): making interface the new active one
[ 18.920948] bondjp: (slave sfp-wan): Enslaving as an active interface with an up link
[ 18.930753] mt7530-mmio 15020000.switch wan: configuring for phy/internal link mode
[ 18.939839] mt7530-mmio 15020000.switch wan: configuring for phy/internal link mode
[ 18.947861] bondjp: (slave wan): Enslaving as a backup interface with an up link
[ 22.349999] mt7530-mmio 15020000.switch lan3: Link is Up - 1Gbps/Full - flow control off
[ 23.060038] mt7530-mmio 15020000.switch wan: Link is Up - 1Gbps/Full - flow control rx/tx
[ 32.268141] mtk_soc_eth 15100000.ethernet sfp-wan: validation with support 00,00000000,00000000,00000000 failed: -EINVAL
[ 32.279115] sfp sfp1: sfp_add_phy failed: -EINVAL
Does this “validation” thing tell you anything?
I tried (once again) your i2csfp tool, but it was in vain:
root@APBureau4:~# i2csfp sfp1 eepromfix
[ 1141.132693] sfp sfp1: module removed
Checksum 0x00-0x3e matched 89
Checksum 0x40-0x5e matched 9b
RollBall Password used: 0x63737777
Checksum 0x00-0x3e matched 89
Checksum 0x40-0x5e matched 9b
root@APBureau4:~# i2csfp sfp1 restore
[ 1154.964505] sfp sfp1: Host maximum power 3.0W
[ 1155.287121] sfp sfp1: module OEM ZK-10G-TX rev 1 sn 2505010443 dc 250412
[ 1155.336988] hwmon hwmon1: temp1_input not attached to any thermal zone
[ 1163.222307] mtk_soc_eth 15100000.ethernet sfp-wan: validation with support 00,00000000,00000000,00000000 failed: -EINVAL
[ 1163.233253] sfp sfp1: sfp_add_phy failed: -EINVAL
so, based on this mysterious validation error, can you help me out?
Yes, it cannot find a valid interface mode to apply, as I mentioned, extcc is zero… Try
static void sfp_fixup_oem_10gt(struct sfp *sfp)
{
sfp_fixup_rollball_cc(sfp);
sfp_fixup_10gbaset_30m(sfp);
}
SFP_QUIRK_F("OEM", "ZK-10G-TX", sfp_fixup_oem_10gt),
As far as I know, sfp_fixup_rollball_wait4s(), is only for the FS modules, but you could also try it, but I would gamble for sfp_fixup_rollball_cc()
echo "file drivers/net/phy/* +p" > /sys/kernel/debug/dynamic_debug/control
Will give you more info on the dmesg output.
i2csfp
USE WITH CAUTION!!!
I think better not to use it, you are already making a new fixup. There is nothing to use it for anymore, as we already know it is rollball.
Is CONFIG_AQUANTIA_PHY set?
After setting link up on the sfp, it could be interesting to dump the i2c at address 0x56. There usually is a copy if the phy-id in the early bytes I believe 0x04-0x07
1 Like
[ 36.568303] sfp sfp1: sfp_add_phy failed: -ETIMEDOUT
[ 36.573379] mt7530-mmio 15020000.switch wan: configuring for phy/internal link mode
[ 36.581873] bondjp: (slave wan): Enslaving as a backup interface with an up link
[ 36.589463] br-lan: port 2(lan3) entered blocking state
[ 36.594685] br-lan: port 2(lan3) entered forwarding state
[ 36.600602] bondjp: entered promiscuous mode
[ 36.604876] mtk_soc_eth 15100000.ethernet sfp-wan: entered promiscuous mode
[ 36.612056] 8021q: adding VLAN 0 to HW filter on device bondjp
[ 36.618090] br-lan: port 3(bondjp) entered blocking state
[ 36.623485] br-lan: port 3(bondjp) entered disabled state
[ 36.628907] bondjp: entered allmulticast mode
[ 36.633259] mtk_soc_eth 15100000.ethernet sfp-wan: entered allmulticast mode
[ 36.640496] br-lan: port 3(bondjp) entered blocking state
[ 36.645890] br-lan: port 3(bondjp) entered forwarding state
[ 36.653963] mtk_soc_eth 15100000.ethernet sfp-lan: configuring for inband/10gbase-r link mode
[ 36.686377] br-lan: port 4(sfp-lan) entered blocking state
[ 36.691881] br-lan: port 4(sfp-lan) entered disabled state
[ 44.604079] mtk_soc_eth 15100000.ethernet sfp-lan: validation with support 00,00000000,00000000,00000000 failed: -EINVAL
[ 44.615030] sfp sfp2: sfp_add_phy failed: -EINVAL
this means I have to try the 4s() hack?
You can try, otherwise it is time to do some debugging…
Did you add anything in the fixup with setting extended_cc? It is where phylink gets the info which interface it can use on the phy and validate it with what the mac is capable of.
Don’t see much extra info. Try inserting the module after adding to the dynamic debugging.
Is dynamic debugging enabled at all? How about that kernel config of aquantia?
Edir:
You could also try another sfp port, not the one on the dsa-switch, just to rule out some possible issues.
Also disable bonding until your module works as expected.
Yeah, well, the 2.5GBE issue is broken beyond repair: it seemed to be 2 different SFP modules. Let’s not worry about those, they had no EEE compatible chip anyway.
So, your long-requested dynamic debug output:
i2csfp sfp1 restore
[ 145.645484] sfp sfp1: Host maximum power 3.0W
[ 145.649918] sfp sfp1: tx disable 1 -> 1
[ 145.653764] sfp sfp1: SM: enter empty:detached:down event insert
[ 145.659777] sfp sfp1: SM: exit probe:detached:down
[ 145.664851] sfp sfp1: SM: enter probe:detached:down event dev_attach
[ 145.671207] sfp sfp1: SM: exit probe:down:down
[ 145.675642] sfp sfp1: SM: enter probe:down:down event dev_up
[ 145.681312] sfp sfp1: SM: exit probe:up:down
root@APBureau4:~# [ 145.966584] sfp sfp1: SM: enter probe:up:down event timeout
[ 145.983234] sfp sfp1: module OEM ZK-10G-TX rev 1 sn 2505010443 dc 250412
[ 145.992638] sfp sfp1: tx disable 1 -> 0
[ 145.996491] sfp sfp1: SM: exit present:up:wait
[ 146.016614] sfp sfp1: los 0 -> 1
[ 146.019837] sfp sfp1: SM: enter present:up:wait event los_high
[ 146.025659] sfp sfp1: SM: exit present:up:wait
[ 146.039197] hwmon hwmon2: temp1_input not attached to any thermal zone
[ 150.006588] sfp sfp1: SM: enter present:up:wait event timeout
[ 150.013172] mdio_bus i2c:sfp1: probed
[ 157.446587] mtk_soc_eth 15100000.ethernet sfp-wan: validation with support 00,00000000,00000000,00000000 failed: -EINVAL
[ 157.457532] sfp sfp1: sfp_add_phy failed: -EINVAL
[ 157.462230] sfp sfp1: SM: exit present:up:fail
[ 157.467131] sfp sfp1: los 1 -> 0
[ 157.470360] sfp sfp1: SM: enter present:up:fail event los_low
[ 157.476099] sfp sfp1: SM: exit present:up:fail
EDIT: aquantia:
modinfo aquantia
filename: /lib/modules/6.12.33/aquantia.ko
license: GPL v2
depends: crc-itu-t
intree: Y
name: aquantia
vermagic: 6.12.33 SMP mod_unload aarch64
root@APBureau4:~#
I’m using both ports to experiment with, so whatever issues bonding may present, they won’t show up on the not bonded uplink
for your extended_cc: How should I put function calls? first rollball, then extended_cc and then gbaset_30m? or some other way?
@ericwoud Do you have any other hints for bringing this i2c interface to life? I tried with the extended_cc first and with the 30m call first, but it didn’t help. Obviously it is probing something it should not. Do you have other dynamic debug flags I could try to figure out why the timeout happens and where? it may also be a hw issue, but not sure why
EDIT I may have found something (but it will give you a headache): When compiling with i2c core, algorithm and bus debug, it seems to work:
while when turning off i2c debug output, it fails:
There’s clearly some timeout we’re hitting, right? This is the patch I currently applied:
--- a/drivers/net/phy/sfp.c 2025-06-13 13:14:05.404485796 +0200
+++ b/drivers/net/phy/sfp.c 2025-06-13 13:21:18.598841574 +0200
@@ -446,6 +446,13 @@
sfp_quirk_disable_autoneg(id, modes, interfaces);
}
+
+static void sfp_fixup_oem_10gt(struct sfp *sfp)
+{
+ sfp_fixup_rollball_cc(sfp);
+ sfp_fixup_10gbaset_30m(sfp);
+}
+
static void sfp_quirk_ubnt_uf_instant(const struct sfp_eeprom_id *id,
unsigned long *modes,
unsigned long *interfaces)
@@ -515,6 +522,7 @@
SFP_QUIRK_F("OEM", "SFP-GE-T", sfp_fixup_ignore_tx_fault),
SFP_QUIRK_F("OEM", "SFP-10G-T", sfp_fixup_rollball_cc),
+ SFP_QUIRK_F("OEM", "ZK-10G-TX", sfp_fixup_oem_10gt),
SFP_QUIRK_M("OEM", "SFP-2.5G-T", sfp_quirk_oem_2_5g),
SFP_QUIRK_M("OEM", "SFP-2.5G", sfp_quirk_oem_2_5g),
SFP_QUIRK_M("OEM", "SFP-2.5G-BX10-D", sfp_quirk_2500basex),
would adding a “sleep” command in sfp_fixup_oem_10gt() work?
one final answer, then I hope some light will shine: I tried with this patch:
--- a/drivers/net/phy/sfp.c 2025-06-13 13:14:05.404485796 +0200
+++ b/drivers/net/phy/sfp.c 2025-06-13 13:21:18.598841574 +0200
@@ -446,6 +446,13 @@
sfp_quirk_disable_autoneg(id, modes, interfaces);
}
+
+static void sfp_fixup_oem_10gt(struct sfp *sfp) {
+ sfp_fixup_10gbaset_30m(sfp);
+ sfp_fixup_rollball_cc(sfp);
+ sfp->module_t_wait = msecs_to_jiffies(10000);
+}
+
static void sfp_quirk_ubnt_uf_instant(const struct sfp_eeprom_id *id,
unsigned long *modes,
unsigned long *interfaces)
@@ -515,6 +522,7 @@
SFP_QUIRK_F("OEM", "SFP-GE-T", sfp_fixup_ignore_tx_fault),
SFP_QUIRK_F("OEM", "SFP-10G-T", sfp_fixup_rollball_cc),
+ SFP_QUIRK_F("OEM", "ZK-10G-TX", sfp_fixup_oem_10gt),
SFP_QUIRK_M("OEM", "SFP-2.5G-T", sfp_quirk_oem_2_5g),
SFP_QUIRK_M("OEM", "SFP-2.5G", sfp_quirk_oem_2_5g),
SFP_QUIRK_M("OEM", "SFP-2.5G-BX10-D", sfp_quirk_2500basex),
and I turned on “i2c algorithm debugging” and “i2c bus debugging”. It was not enough:
i2csfp sfp1 restore
[ 155.393151] sfp sfp1: Host maximum power 3.0W
[ 155.397583] sfp sfp1: tx disable 1 -> 1
[ 155.401428] sfp sfp1: SM: enter empty:detached:down event insert
[ 155.407437] sfp sfp1: SM: exit probe:detached:down
[ 155.412509] sfp sfp1: SM: enter probe:detached:down event dev_attach
[ 155.418864] sfp sfp1: SM: exit probe:down:down
[ 155.423299] sfp sfp1: SM: enter probe:down:down event dev_up
[ 155.428968] sfp sfp1: SM: exit probe:up:down
root@APBureau4:~# [ 155.716366] sfp sfp1: SM: enter probe:up:down event timeout
[ 155.733000] sfp sfp1: module OEM ZK-10G-TX rev 1 sn 2505010443 dc 250412
[ 155.742401] sfp sfp1: tx disable 1 -> 0
[ 155.746253] sfp sfp1: SM: exit present:up:wait
[ 155.756413] sfp sfp1: los 0 -> 1
[ 155.759643] sfp sfp1: SM: enter present:up:wait event los_high
[ 155.765466] sfp sfp1: SM: exit present:up:wait
[ 155.779015] hwmon hwmon2: temp1_input not attached to any thermal zone
[ 166.246368] sfp sfp1: SM: enter present:up:wait event timeout
[ 166.252950] mdio_bus i2c:sfp1: probed
[ 173.669344] mtk_soc_eth 15100000.ethernet sfp-wan: validation with support 00,00000000,00000000,00000000 failed: -EINVAL
[ 173.680350] sfp sfp1: sfp_add_phy failed: -EINVAL
[ 173.685051] sfp sfp1: SM: exit present:up:fail
[ 176.691632] sfp sfp1: los 1 -> 0
[ 176.694877] sfp sfp1: SM: enter present:up:fail event los_low
[ 176.700628] sfp sfp1: SM: exit present:up:fail
so I hope @ericwoud you know why slowing down this way didn’t work, but slowing down i2c as a whole by turning on debug output worked
EDIT just to be sure: the link is REALLY up, I could even view the eee settings of the aqr113c:
root@APBureau4:~# ethtool --show-eee sfp-lan
EEE settings for sfp-lan:
EEE status: disabled
Tx LPI: 0 (us)
Supported EEE link modes: 1000baseT/Full
10000baseT/Full
1000baseKX/Full
10000baseKX4/Full
10000baseKR/Full
2500baseT/Full
5000baseT/Full
Advertised EEE link modes: Not reported
Link partner advertised EEE link modes: 100baseT/Full
1000baseT/Full
10000baseT/Full
Be careful in the order, both functions set sfp->id.base.extended_cc to a different value.
Maybe use sfp_fixup_rollball() instead of sfp_fixup_rollball_cc(), if it is sfp_fixup_10gbaset_30m() that sets the correct value.
You know it is really up when you get a ping accros,. For example if the mac is still configured wrong, you get link up on the phy and advertisement, but still no ping.
As for the delay, you could still try:sfp_fixup_rollball_wait4s()
sfp->module_t_wait = msecs_to_jiffies(1000);
Try a shorter period here…
Or
sfp->module_t_start_up = msecs_to_jiffies(1000);
Or similar
Or perhapse:
sfp->i2c_block_size = 1;
Will slow things down, but that is really hacky.
You know it is really up when you get a ping accros,
Yeah, that did work … for a while. After a few minutes, the module was “removed”, reinserted, and got no link do you know why the aquantia driver says
Aquantia AQR113C i2c:sfp1:11: unrecognised serdes mode 7
it might point to the reason it didn’t work?
nope, tried but failed again
Maybe because the different ext_cc, thus the different SFF8024_ECC_10GBASE_T_SR vs SFF8024_ECC_10GBASE_T_SFI ?
